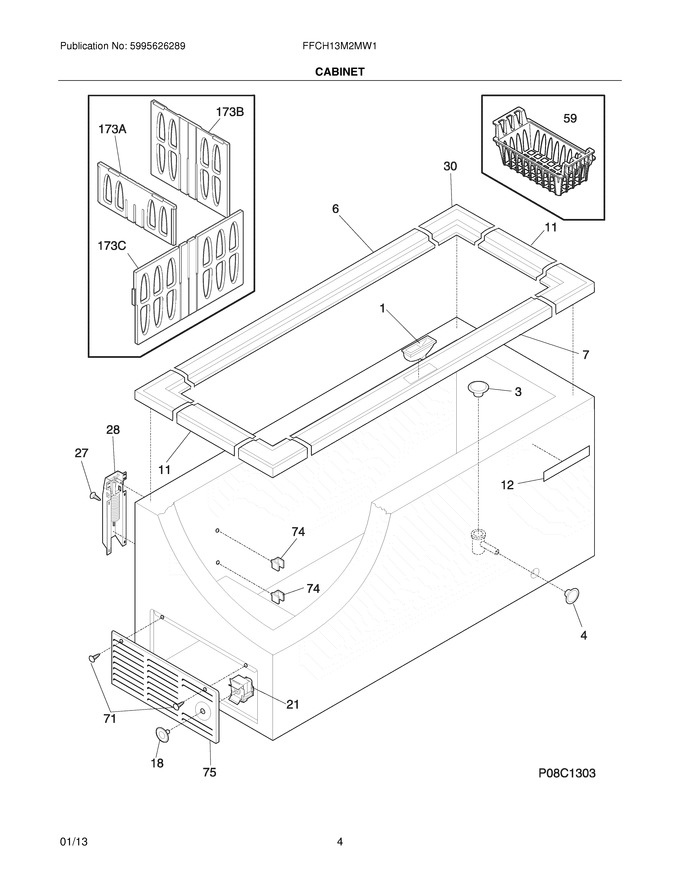

05 - Cabinet


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216954500		Catch-lock				$ 19.16
3	216502600		Plug-drain,interior			Immediately	$ 17.35
4	297013600		Plug-drain,exterior				$ 9.98
6	216955503		Breaker,plain ,white ,hinge Side				$ 8.32
7	297129100		Breaker,lock Side ,w/lock Catch				$ 32.13
11	216955500		Breaker,chest End ,(2)				$ 15.75
12	242062801		Nameplate,white				$ 11.65
18	216707200		Knob,temp Control				$ 44.10
27	216629601		Screw,hex Washer Head ,10-16 X 0.500 ,tapping				$ 13.01
28	297321800		Hinge				$ 53.40
30	216110700		Breaker Corners				$ 28.45
59	216916203		Basket,blue/gray ,upper				$ 63.95
71	5303302714		Screw,no.8-18 X .75		Appelez-nous	-
74	216486700		Support,divider ,(4)				$ 51.40
75	216034301		Panel-access, White				$ 103.01
21No.	216714601		Control Temperature				$ 143.87
F173	297063001		Divider,chest,step				$ 33.02
F173	297063101		Divider,small Chest				$ 115.97
F173	297073001		Divider				$ 78.96
NI	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
