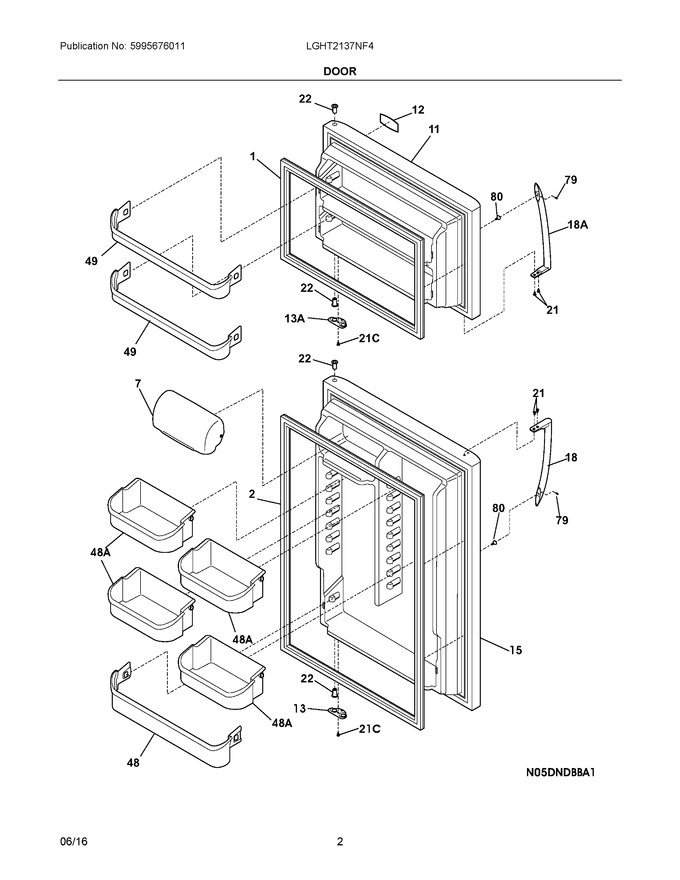

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 242193211 | Gasket-frzr Door, Black, Magnetic (Replaces: 241872511) |
|
$ 187.11 | |||||
| 2 | 242193214 | Gasket, Refr Door Seal, Black, Magnetic (Replaces: 241872514) |
|
$ 190.85 | |||||
| 7 | 240338313 | Door, Dairy, Clear (Replaces: 240338303) |
|
Immediately | $ 80.80 | ||||
| 11 | 240450394 | Door-frzr, Stainless, Complete Assy |
|
$ 393.54 | |||||
| 12 | 242015201 | Label-nameplate |
|
Immediately | $ 6.90 | ||||
| 13 | 240312422 | Door Stop, Black, Refr (Replaces: 240312405) |
|
$ 15.17 | |||||
| 15 | 241837285 | Door-refr, Stainless, Complete Assy |
|
$ 546.74 | |||||
| 18 | 241977901 | Handle-door, Stainless, Refr-rh/frzr-lh (Replaces: 241977501) |
|
$ 336.65 | |||||
| 21 | 5304515677 | Screw, Truss Hd Quad, #10-16 X .500, Zinc (Replaces: 240383406) |
|
Immediately | $ 19.23 | ||||
| 22 | 5304507147 | Bearing-hinge, Black (Replaces: 240527102) |
|
Immediately | $ 7.59 | ||||
| 48 | 240338101 | Bin-door |
|
Immediately | $ 52.37 | ||||
| 49 | 240495804 | Bin-door, Pseudo, Frzr |
|
Immediately | $ 43.29 | ||||
| 79 | 218755405 | Screw-set, 10-32 X 0.500 (Replaces: 218755407) |
|
Immediately | $ 20.56 | ||||
| 80 | 218755504 | Screw, Shoulder, #10-ab, Handle Mounting |
|
Immediately | $ 18.60 | ||||
| 13A | 240312415 | Door Stop, Black, Frzr |
|
$ 21.27 | |||||
| 18A | 241977901 | Handle-door, Stainless, Refr-lh/frzr-rh (Replaces: 241977502) |
|
$ 336.65 | |||||
| 21C | 218252201 | Screw, #8 Truss Hd, 10-32ca X 0.500 |
|
Immediately | $ 14.18 | ||||
| 48A | 241808201 | Bin-door |
|
Immediately | $ 79.97 | ||||
| NIA | 241601001 | Wrench, Allen |
|
- | |||||
| NIB | 241701901 | Screw Driver |
|
- |
