SELECT A DIAGRAM

01 - Cover

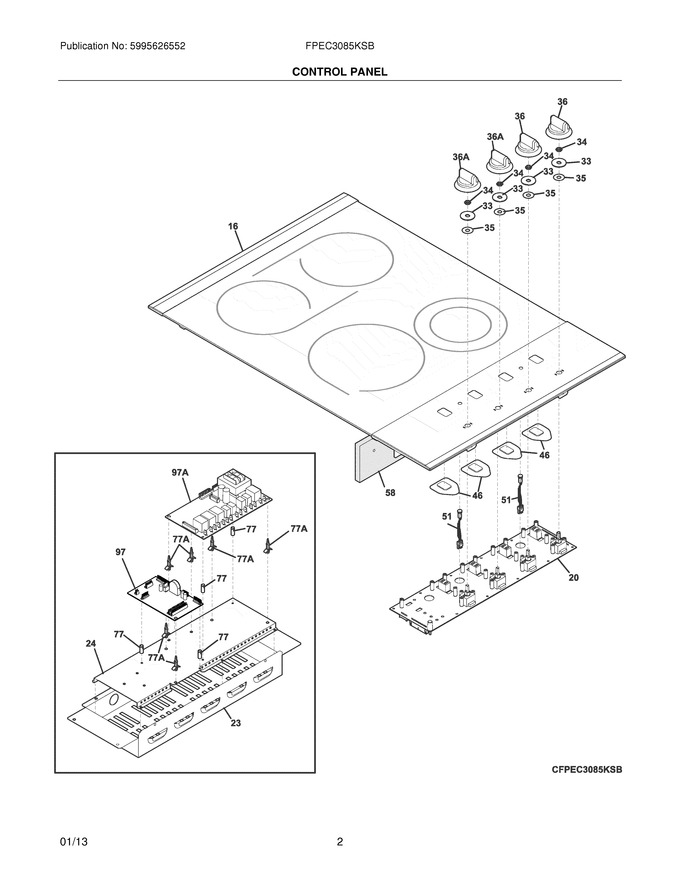

03 - Control Panel


05 - Main Top/surface Units


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318079258		Main Top Assembly,glass ,black/stainless,w/trim & Frame				$ 558.65
23	318194728		Panel,service		Appelez-nous	-
24	318319205		Deflector,service Panel		Appelez-nous	-
33	318146012		Bushing,control ,(4)				$ 15.60
34	316247700		Nut,mounting				$ 18.20
35	318086007		Washer,flat ,(4) ,control				$ 9.93
36	316564609		Knob,control ,stainless ,single				$ 132.51
46	318319051		Lens,indicator Light				$ 61.69
58	318346008		Insulation		Appelez-nous	-
77	318293702		Spacer,control				$ 16.22
36A	316564612		Knob,control ,stainless ,dual				$ 61.06
77A	316114100		Spacer				$ 60.96
F20	316543602		Board,user Interface ,rotary ,w/potentiometer				$ 464.78
F51	318250409		Light,indicator ,white				$ 203.12
F97	316442065		Board,user Interface ,(uib)				$ 247.22
F97A	316442119		Board,power ,7 Relay			Immediately	$ 399.17
FNI	318578366		Harness,wiring ,pilot Light		Appelez-nous	-
FNI	318402334		Harness,wiring ,interface ,to Relay Board				$ 97.27
FNI	318402330		Harness,wiring ,interface ,to Display				$ 455.77
NI	5303308449		Fastener,wire Tie		Appelez-nous	-
NI	5303307980		Screw,8-32 X 0.437 ,(4)			Immediately	$ 14.18
NI	5303323140		Screw,ground ,10-32 X 0.375		Appelez-nous	-
NI	5304415832		Screw,8-18 X 0.406		Appelez-nous	-
NI	5303311306		Screw,8-18 X 0.375 ,(4)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
