Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 9751051 Back Panel, Chassis Appelez-nous -
3 9751353 Panel, Rear Cover Appelez-nous -
5 9751418 Bracket, Lock Appelez-nous -
6 9751500 Bracket, Regulator Valve Appelez-nous -
7 9751439 Oven Lock Assembly Appelez-nous -
8 9751590 Solenoid Appelez-nous -
9 422222 Screw, 10-32 X .31 Appelez-nous -
10 424238 Washer Appelez-nous -
12 9751763 Switch, Interloc Appelez-nous -
13 9750887 Screw, 4-40 X 1 Appelez-nous -
14 9750888 Nut (2) Appelez-nous -
15 9750523 Rod, Lock Appelez-nous -
17 WP8203546 Terminal Block   (Replaces: 258076) In-Stock Immediately $ 27.12

18 98884 Screw, 10-16 X 1 Appelez-nous -
19 340184 Screw, 10-16 X 1.5 Special Order $ 12.10


    View Diagram in Separate Window     Print Icon   Print Part List

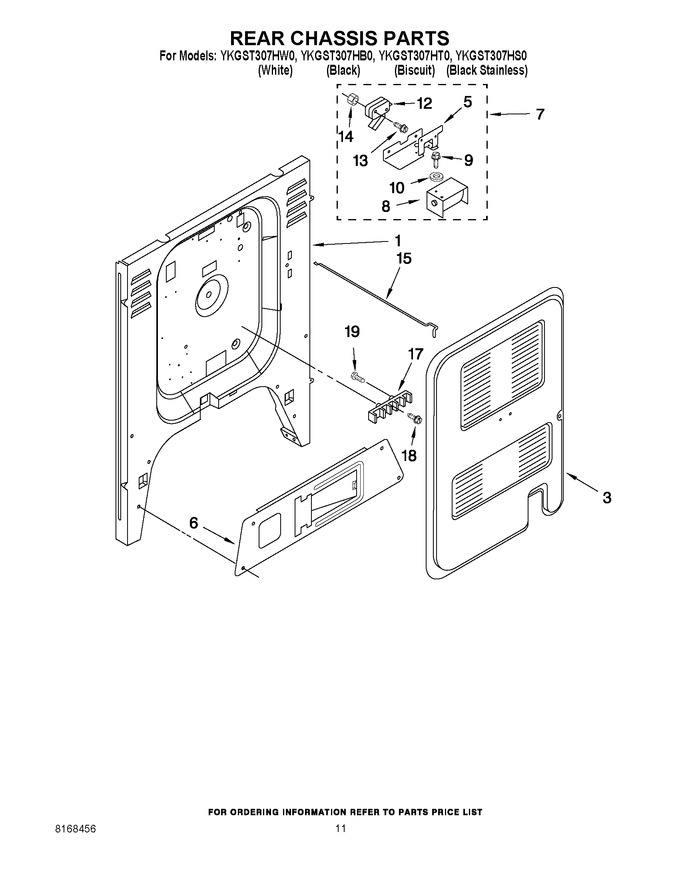

Diagram for YKGST307HB0
