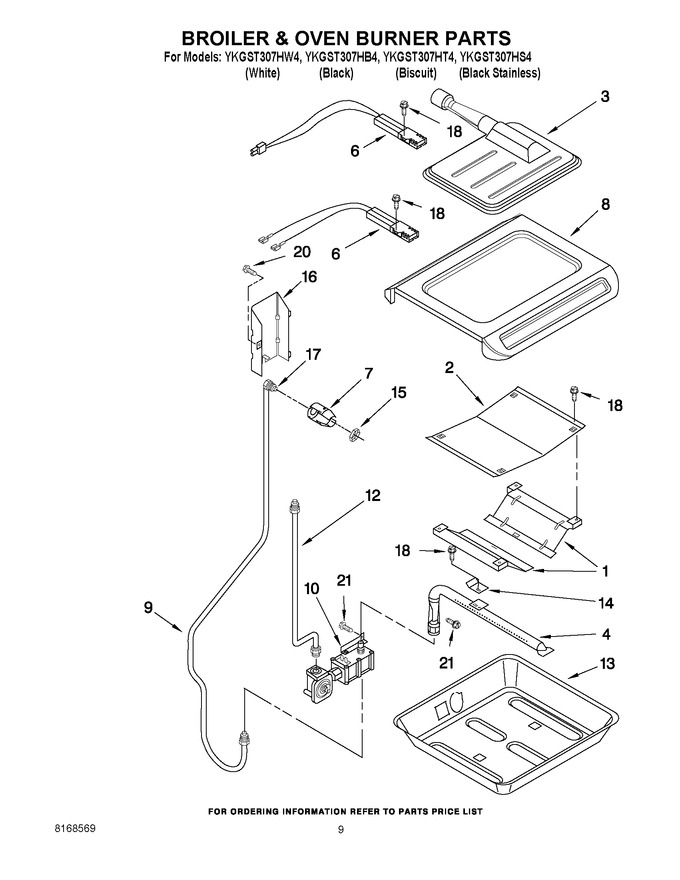

05 - Oven Chassis Parts


06 - Broiler & Oven Burner Parts


07 - Oven Parts


08 - Rear Chassis Parts


09 - Miscellaneous Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9752737		Shield, Oven (2)				$ 22.04
2	9752738		Flame Shield, Bake		Appelez-nous	-
3	9752922		Burner, Broiler		Appelez-nous	-
4	9751367		Burner, Bake		Appelez-nous	-
6	WP9782065		Ignitor, Common Bake & Broil   (Replaces: 9753108)			Immediately	$ 187.39
7	9752858		Bracket, Broil Shooter		Appelez-nous	-
8	9752736GM		Pan, Oven Bottom		Appelez-nous	-
9	9751173		Tubing, Broil		Appelez-nous	-
10	WP9755424		Valve, Regulator Assembly   (Replaces: 9752698)				$ 358.11
12	9781015		Tubing, Valve To Regulator		Appelez-nous	-
13	9752734		Pan Support, Bake		Appelez-nous	-
14	9751600		Bracket, Bake		Appelez-nous	-
15	9751203		Nut No.18 5/8		Appelez-nous	-
16	9752920		Coverbox (broiler Tubing)		Appelez-nous	-
17	9752716		Orifice No.54		Appelez-nous	-
18	9751643		Screw, 10-24x3/8		Appelez-nous	-
20	9780265		Screw, 10-16 X 3/8		Appelez-nous	-
21	776593		Screw, 1/4-20x1/2		Appelez-nous	-
