SELECT A DIAGRAM
New Model Search:

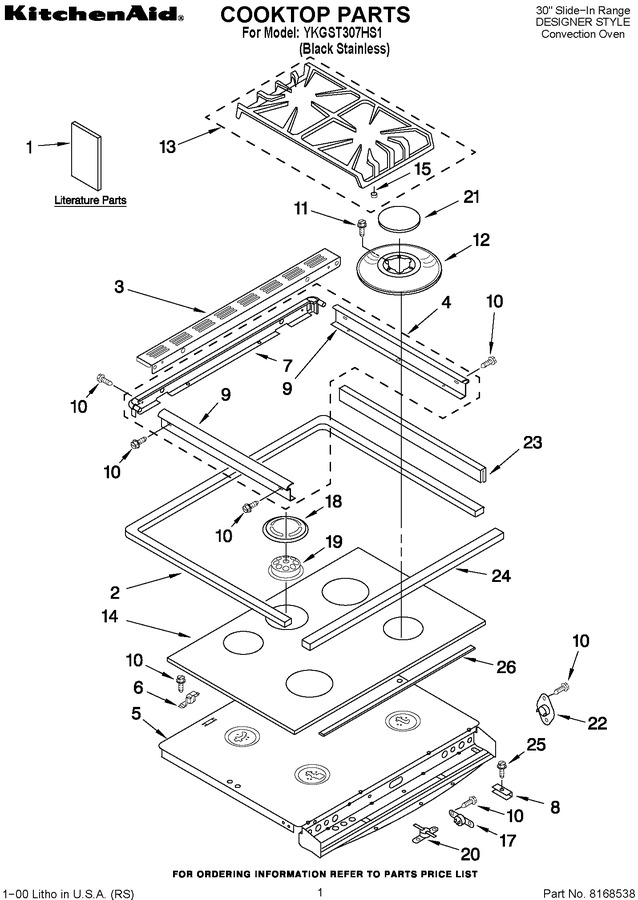

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT9753562 | Installation Instructions (english) |
|
- | |||||
| 1 | LIT9753848 | Lp Conv Instr. |
|
- | |||||
| 1 | LIT9753562F | Installation Instructions (french) |
|
- | |||||
| 1 | LIT9780959 | Cookbook |
|
- | |||||
| 1 | LIT9753620 | Use & Care Guide (english) |
|
- | |||||
| 1 | LIT9753620F | Use & Care Guide (french) |
|
- | |||||
| 1 | LIT9752686 | Smart & Easy Guide (english) |
|
- | |||||
| 1 | LIT9752687 | Smart & Easy Guide (french) |
|
- | |||||
| 1 | LIT9753621 | Tech Sheet |
|
- | |||||
| 1 | LIT9753622 | Wiring Diagram |
|
- | |||||
| 1 | LIT9752775 | Template, Anti-tip |
|
- | |||||
| 2 | WP9780939 | Gasket, Cooktop (Replaces: 9754102) |
|
Immediately | $ 60.83 | ||||
| 3 | 9752090PB | Vent, Rear |
|
- | |||||
| 4 | 9781832PB | Frame, Cooktop |
|
- | |||||
| 5 | 9753603 | Support, Burner |
|
- | |||||
| 6 | 9751629 | Bracket, Pivot |
|
- | |||||
| 7 | 9781831PB | Trim, Rear (includes End Caps) |
|
- | |||||
| 8 | 9750821 | Support Clips (4) |
|
- | |||||
| 9 | 9781828PB | Trim, Side |
|
- | |||||
| 10 | 9780265 | Screw, 10-16 X 3/8 |
|
- | |||||
| 11 | WP3368921 | Screw, 7-18 X 3/4 (Replaces: 3400701) |
|
Immediately | $ 6.42 | ||||
| 12 | 9753600GB | Bezel, Burner (14k Lf) |
|
- | |||||
| 12 | 9753601GB | Bezel, Burner (6k Rf-lr) |
|
- | |||||
| 12 | 9753602GB | Bezel, Burner (12k Rr) |
|
- | |||||
| 13 | 9753616GB | Grate, Burner |
|
- | |||||
| 14 | 9753606CB | Cooktop, Glass |
|
- | |||||
| 15 | 814323 | Pad, Grate (4) (Replaces: 9752638) |
|
Immediately | $ 10.28 | ||||
| 17 | 341196 | Thermo-disc |
|
$ 33.17 | |||||
| 18 | 9751271GB | Cap, Vent |
|
- | |||||
| 19 | 9751366 | Cap, Vent |
|
- | |||||
| 20 | WP9759944 | Fuse, Bi-metal (Replaces: 9751984) |
|
Immediately | $ 121.57 | ||||
| 21 | WP3191898 | Cap, Burner (6k Rf-lr) (Replaces: 3191898) |
|
$ 60.86 | |||||
| 21 | 9753939GB | Cap, Burner (14k Lf) |
|
$ 49.08 | |||||
| 21 | WP3191904 | Cap, Burner (12k Rr) (Replaces: 3191904) |
|
$ 157.85 | |||||
| 22 | 9752006 | Thermostat, Fixed |
|
$ 130.03 | |||||
| 23 | 9752034 | Seal, Rubber (2) |
|
- | |||||
| 24 | 9751478 | Gasket, Console |
|
- | |||||
| 25 | 9751871 | Screw, 10-16 X 1 |
|
- | |||||
| 26 | 9754135 | Pad, Cooktop (200mm (1)) |
|
- | |||||
| 26 | 9754134 | Pad, Cooktop (88mm (16)) |
|
- |
