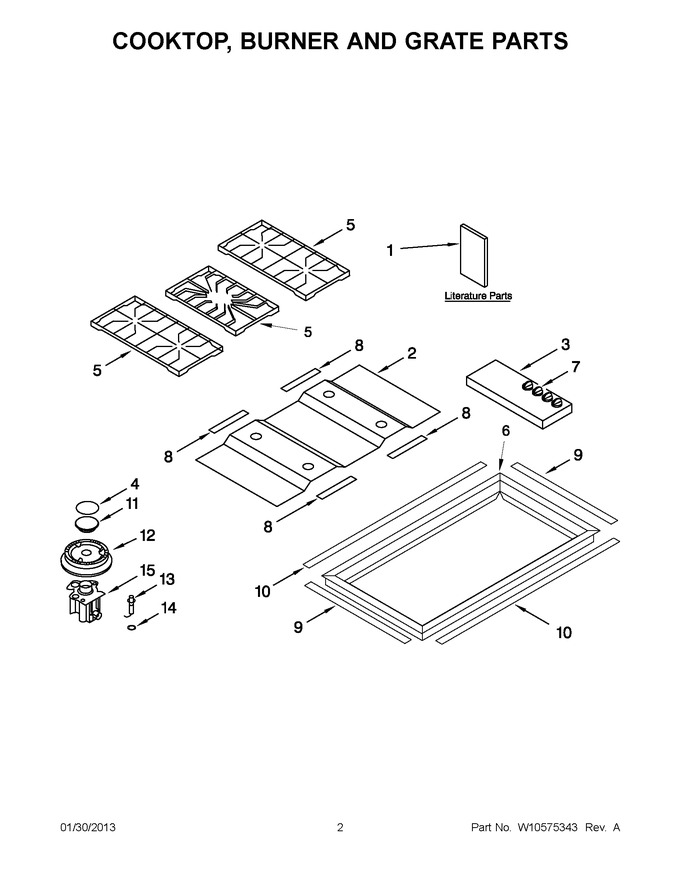

01 - Cooktop, Burner And Grate Parts


02 - Burner Box, Gas Valves And Switches


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10251095		Use & Care Guide		Appelez-nous	-
1	9762236		Lp Conversion Instructions		Appelez-nous	-
1	9761893		Installation Instructions		Appelez-nous	-
2	8190902		Cooktop		Appelez-nous	-
3	8190909		Panel, Control		Appelez-nous	-
4	8190895		Cap,burner(black) (15,000 Btu Center)		Appelez-nous	-
4	WP8190894		Cap,burner(black) (12,000 Btu Left Front And Right Rear)   (Replaces: 8190894)				$ 64.03
4	WP8190893		Cap,burner(black) (9000 Btu Right Front And Left Rear)   (Replaces: 8190893)				$ 60.61
5	8190980		Grate, Burner (black, Center)		Appelez-nous	-
5	8190891		Grate, Burner (black)		Appelez-nous	-
6	8190906		Frame, Top		Appelez-nous	-
7	8190908		Knob (stainless)		Appelez-nous	-
8	8190903		Seal, Foam 3/8 X 1/2 X 5.5``		Appelez-nous	-
9	8190905		Seal, Foam 1/8 X 1/2 X 18``				$ 44.36
10	8190981		Seal, Foam 1/8 X 1/2 X 33``				$ 27.42
11	8190897		Head, Burner (12,000 Btu Left Front And Right Rear)				$ 190.51
11	WP8190898		Head, Burner (15,000 Btu Center)   (Replaces: 8190898)				$ 184.97
11	WP8190896		Head, Burner (9,000 Btu Right Front And Left Rear)   (Replaces: 8190896)				$ 150.16
12	8190899		Base, Burner (9,000 Right Front And Left Rear)				$ 149.35
12	8190900		Base, Burner (12,000 Btu Left Front And Right Rear)				$ 157.66
12	8190901		Base, Burner (15,000 Btu Center)				$ 177.52
13	8190892		Ignitor, Surf				$ 32.43
14	8190904		Clip, Spring				$ 8.56
15	8190932		Holder, Orifice (15,000 Btu Center)		Appelez-nous	-
15	8190931		Holder, Orifice (12,000 Btu Left Front And Right Rear)		Appelez-nous	-
15	8190930		Holder, Orifice (9,000 Btu Right Front And Left Rear)		Appelez-nous	-
