01 - Cooktop Parts
02 - Backguard Parts
03 - Manifold Parts
04 - Chassis Parts
05 - Oven And Broiler Parts
06 - Door Parts
07 - Miscellaneous Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

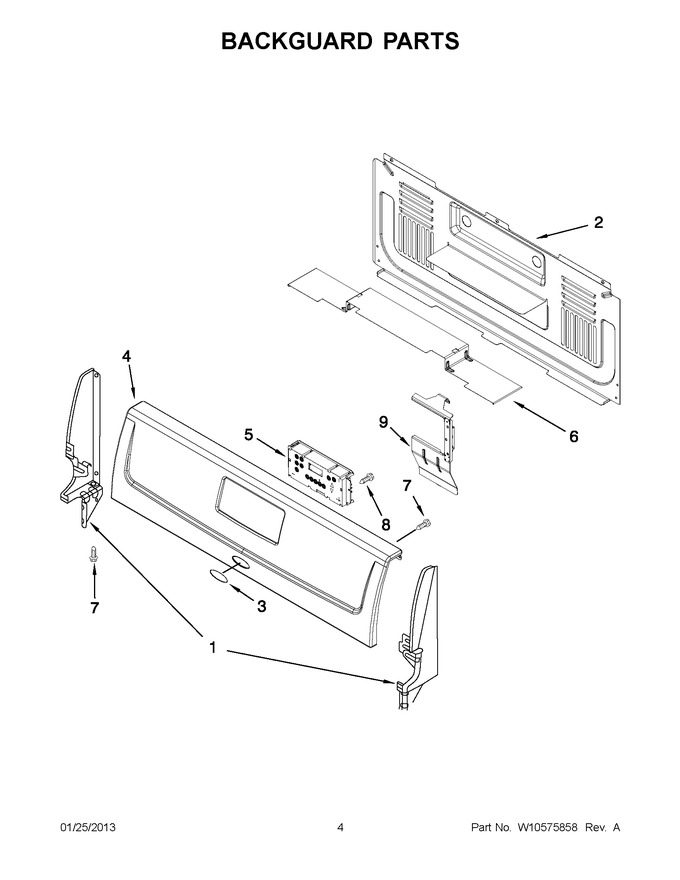

| 1 | 98004632 | Endcap (black (left Hand)) |
|
$ 76.20 | |||||
| 1 | 98004633 | Endcap (black (right Hand)) |
|
$ 77.53 | |||||
| 1 | 98005336 | Endcap (white (left Hand)) |
|
$ 79.14 | |||||
| 1 | 98005337 | Endcap (white (right Hand)) |
|
$ 79.22 | |||||
| 2 | 98006083 | Backguard, Rear |
|
- | |||||
| 3 | W11178521 | Badge (white) (Replaces: W10481434) |
|
Immediately | $ 56.82 | ||||
| 3 | W11178521 | Badge (grey) (Replaces: W10481433) |
|
Immediately | $ 56.82 | ||||
| 4 | 98017734W | Panel, Control (white) |
|
- | |||||
| 4 | 98017734B | Panel, Control (black) |
|
- | |||||
| 4 | W10193820 | Panel, Control (stainless) |
|
- | |||||
| 5 | WPW10335164 | Control, Elec (white (lcc90)) (Replaces: W10335164) |
|
$ 442.40 | |||||
| 5 | WPW10312660 | Control, Elec (black (lcc90)) (Replaces: W10312660) |
|
$ 378.82 | |||||
| 6 | W10120794 | Deflector, Rear Cover |
|
- | |||||
| 7 | WP3400805 | Screw (Replaces: 98015526) |
|
$ 6.47 | |||||
| 8 | WP3400805 | Screw (Replaces: 98004219) |
|
$ 6.47 | |||||
| 9 | 98018144 | Bracket, Timer (left Hand) |
|
- | |||||
| 9 | 98018143 | Bracket, Timer (right Hand) |
|
- |
