SELECT A DIAGRAM

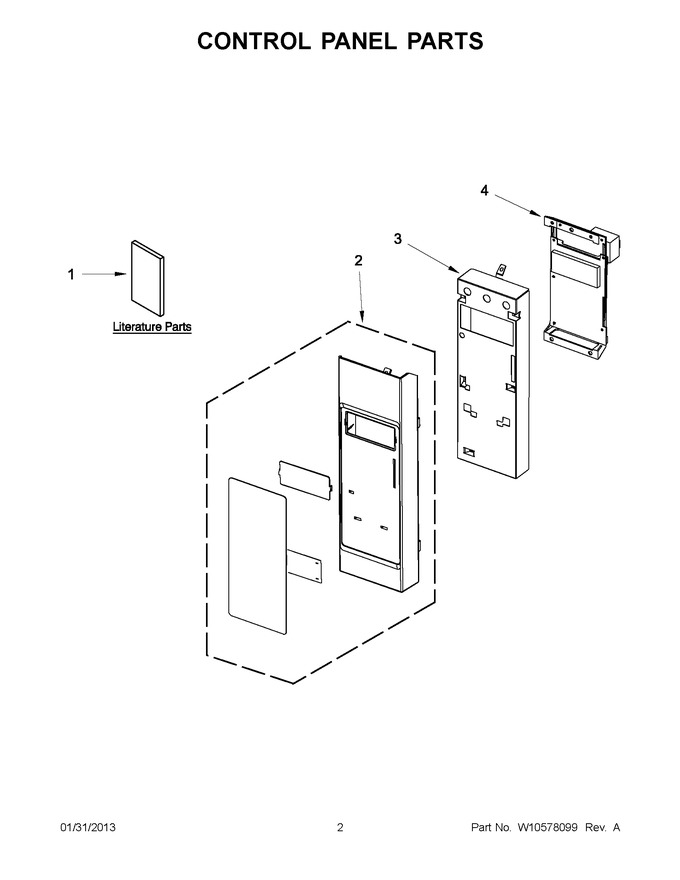

01 - Control Panel Parts


02 - Door Parts


03 - Interior And Ventilation Parts


04 - Air Flow Parts


05 - Turntable Parts


06 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10451742		Use And Care Guide		Appelez-nous	-
1	W10537548		Tech Sheet		Appelez-nous	-
1	W10451348		Guide, Quick Reference		Appelez-nous	-
1	W10247296		Installation Instructions		Appelez-nous	-
2	W10472647		Panel Asy, Control Includes Lens And Membrane Switch (white)		Appelez-nous	-
2	W10472648		Panel Asy, Control Includes Lens And Membrane Switch (black)		Appelez-nous	-
2	W10444525		Panel Asy, Control Includes Lens And Membrane Switch (stainless)				$ 280.18
2	W10472650		Panel Asy, Control Includes Lens And Membrane Switch (white Ice)				$ 133.42
2	W10472649		Panel Asy, Control Includes Lens And Membrane Switch (black Ice)		Appelez-nous	-
3	W10471683		Backer, Control Panel		Appelez-nous	-
4	W10559340		Control, Electronic Pcba		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
