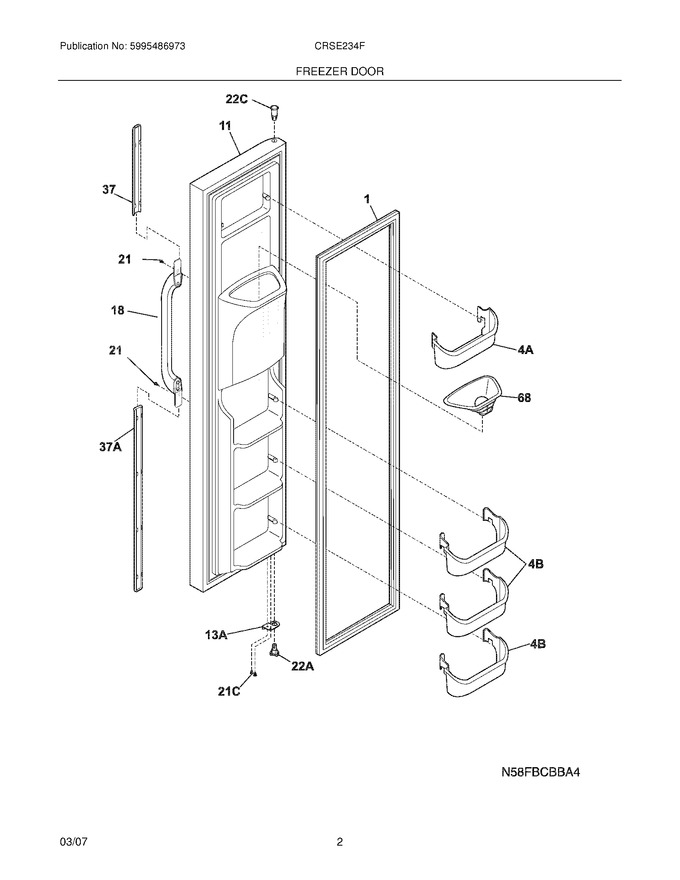

SELECT A DIAGRAM
01 - Cover
03 - Freezer Door
05 - Refrigerator Door
07 - Cabinet
09 - Shelves
11 - Controls
13 - System
15 - Ice & Water Dispenser
17 - Ice Container
19 - Ice Maker
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 241615180 | Door-frzr,silver Mist ,complete Assy |
|
- | |||||
| 18 | 218668404 | Handle-door,black |
|
- | |||||
| 21 | 218781101 | Screw,pan Head ,8-18 X 0.625 |
|
$ 15.60 | |||||
| 37 | 218811651 | Trim-handle,black ,upper |
|
- | |||||
| 68 | 241525101 | Chute-ice |
|
$ 82.25 | |||||
| 13A | 240581906 | Door Stop,black ,frzr |
|
$ 73.00 | |||||
| 21C | 5303323137 | Screw,10-32 X 1/2 (Replaces: 240598402) |
|
$ 11.88 | |||||
| 22A | 242000502 | Bearing-hinge(frz),black ,closer (Replaces: 240328204) |
|
$ 7.18 | |||||
| 22C | 240328404 | Bearing-hinge,black ,upper |
|
$ 22.87 | |||||
| 37A | 218811650 | Trim-handle,black ,lower |
|
- | |||||
| 4A | 240367301 | Bin-door,frzr-upper |
|
Immediately | $ 44.68 | ||||
| 4B | 240359001 | Bin-door |
|
Immediately | $ 68.11 | ||||
| F1 | 241786016 | Gasket-frzr Door,black ,magnetic (Replaces: 241674808) |
|
$ 93.12 | |||||
| NI | 240545201 | Connector-water,straight (Replaces: 240352102) |
|
$ 73.71 | |||||
| NI | 5304521763 | Harness-wiring,door (Replaces: 240552101) |
|
$ 85.69 | |||||
| NI | 5303918256 | Dispenser Heater Kit |
|
$ 474.16 |
