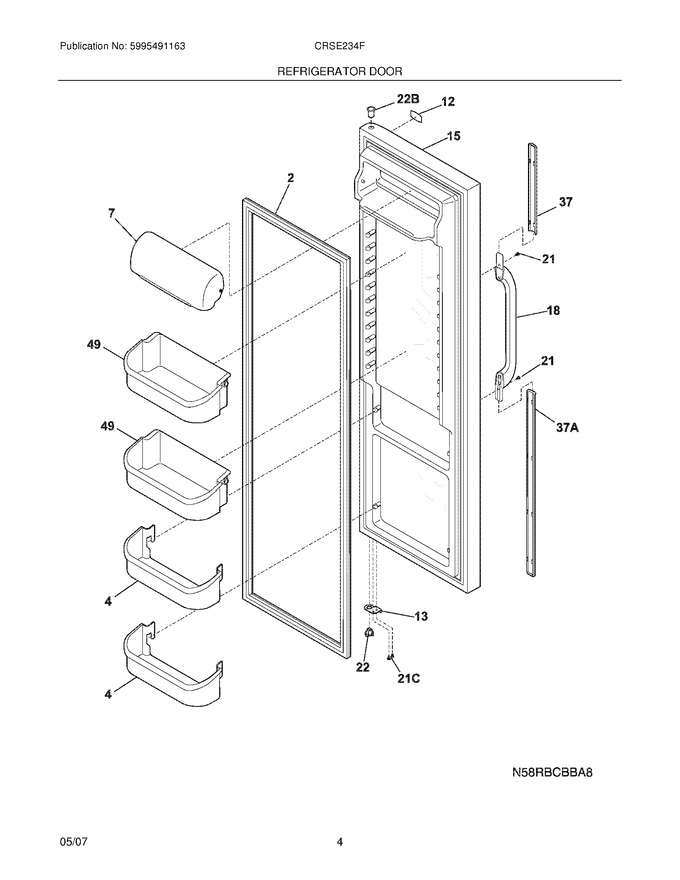

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	240363702		Bin-door,2-liter			Immediately	$ 76.40
7	240338313		Door,dairy ,clear   (Replaces: 240338303)			Immediately	$ 80.80
12	240415207		Label-nameplate,black				$ 3.55
13	240581905		Door Stop,black ,ref				$ 60.25
15	241629350		Door-refr,silver Mist ,complete Assy		Appelez-nous	-
18	218668404		Handle-door,black		Appelez-nous	-
21	218781101		Screw,pan Head ,8-18 X 0.625				$ 15.60
22	240328203		Bearing-hinge,black ,closer			Immediately	$ 27.23
37	218811651		Trim-handle,black ,upper		Appelez-nous	-
49	240324502		Bin-door,gallon			Immediately	$ 102.61
21C	5303323137		Screw,10-32 X 1/2   (Replaces: 240598402)				$ 11.88
22B	240328404		Bearing-hinge,black ,upper				$ 22.87
37A	218811650		Trim-handle,black ,lower		Appelez-nous	-
F2	241786015		Gasket-refr Door,black ,magnetic   (Replaces: 241674807)			Immediately	$ 94.66
