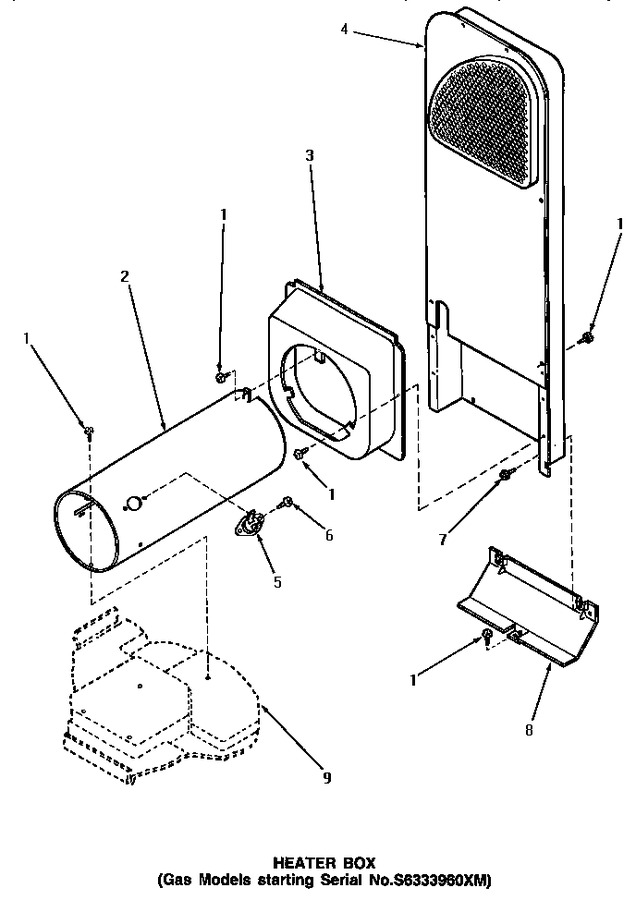

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP27001200		Screw   (Replaces: 33562)				$ 6.91
2	61974		Burner Housing		Appelez-nous	-
3	Y60948		Heat Shroud		Appelez-nous	-
4	61161P		Heater Box		Appelez-nous	-
5	489P3		Limit Thermostat				$ 36.02
6	Sub. To D510151W		Screw, 6b-20x5/16   (Replaces: 51782)		Appelez-nous	-
7	WP3390631		Hex Head Screw   (Replaces: 51780)				$ 7.04
8	60952		Shield,heat Duct		Appelez-nous	-
9	Y00000000		See Note Base		Appelez-nous	-
