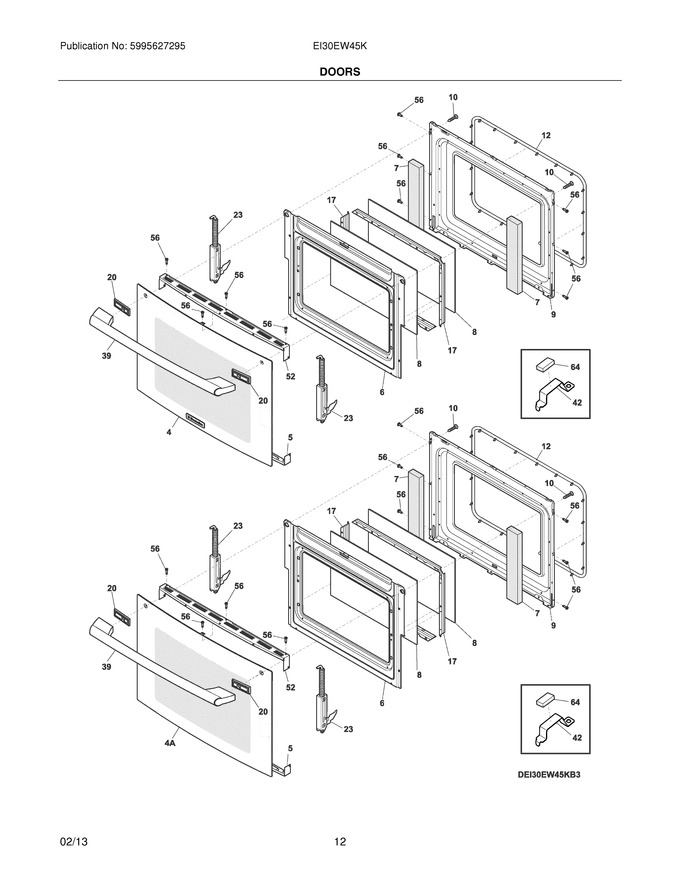

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	318261391		Glass Assy.,upper Door ,black ,outer ,w/trim & Badge				$ 171.36
5	318904905		Trim,door ,lower				$ 40.06
6	318904202		Deflector,door				$ 35.86
7	318372013		Insulation,door		Appelez-nous	-
8	5304503232		Glass,oven Door ,heat Barrier   (Replaces: 316117502)				$ 116.95
9	318904019		Liner,door				$ 112.30
10	5304477736		Screw,machine ,10-24x29/32 ,(2)		Appelez-nous	-
12	318053132		Gasket,oven Door Seal   (Replaces: 318053131)			Immediately	$ 159.56
17	318264716		Spacer,glass ,(2)				$ 39.27
20	318902901		Spacer,handle ,black ,(2)				$ 15.02
23	318586004		Hinge,oven Door		Appelez-nous	-
39	241881313		Handle,door ,black				$ 165.80
42	318382302		Bracket,glass Retainer ,(4)   (Replaces: 318382301)				$ 50.81
52	318904703		Trim,door ,black ,upper				$ 57.28
56	5304476599		Screw,8-18 X 3/8				$ 3.36
64	5304455945		Spacer,pad		Appelez-nous	-
4A	318261394		Glass Assy.,lower Door ,black ,outer ,w/trim		Appelez-nous	-
NI	5304481623		Screw,hinge/recpt Mtg				$ 9.61
NI	134716700		Washer,flat ,lower   (Replaces: 3201909)				$ 2.12
NI	318346060		Insulation,.125 Thick ,3.125 X 8 ,(2)		Appelez-nous	-
NI	5304436875		Screw,8-18 X 1/2 ,black ,(3)				$ 14.41
