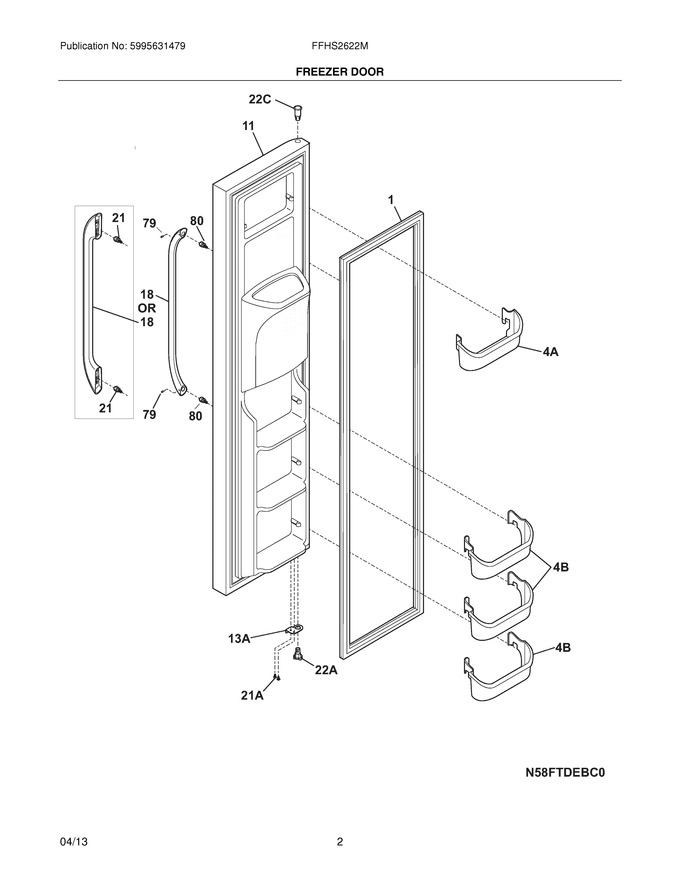

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 242178007 | Door-frzr,silver Mist ,complete Assy |
|
- | |||||
| 18 | 242059104 | Handle-door,black |
|
$ 124.64 | |||||
| 21 | 241695904 | Screw |
|
$ 14.41 | |||||
| 79 | 218755402 | Screw-set,10-32 X .500 In |
|
Immediately | $ 33.00 | ||||
| 13A | 241942604 | Door Stop,black ,frzr |
|
$ 20.56 | |||||
| 21A | 240442708 | Screw-no.10-32 X 3/4,zinc (Replaces: 240442706) |
|
$ 8.34 | |||||
| 22A | 241990302 | Bearing-hinge(frz),closer |
|
$ 7.09 | |||||
| 22C | 241760401 | Bearing,hinge ,top |
|
Immediately | $ 19.13 | ||||
| 4A | 240334201 | Bin-door,frzr-upper |
|
$ 67.21 | |||||
| 4B | 240351601 | Bin-door |
|
Immediately | $ 58.73 | ||||
| F1 | 241786014 | Freezer Door Gasket, Grey, Magnetic (Replaces: 241786006) |
|
$ 95.17 | |||||
| FNI | 5304521768 | Harness,wiring ,dispenser Door (Replaces: 242207001) |
|
$ 38.28 | |||||
| NI | 241806601 | Connector-water,straight ,5/16 To 5/16 (Replaces: 242103001) |
|
Immediately | $ 70.56 |
