Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
24	242068704		Shelf,sliding ,cantilever ,``spill-safe``				$ 191.94
26	241801803		Pan-crisper,(2)				$ 235.17
42	242079401		Support,crspr Pan Rolle			Immediately	$ 31.19
48	242122101		Channel-shelf Mtg,center				$ 80.09
49	242122202		Channel-shelf Mtg,side ,lh				$ 67.33
51	242120001		Slide-deli			Immediately	$ 165.85
62	242096815		Pan-deli   (Replaces: 242096803)				$ 169.65
75	242072702		Shield-light,refr				$ 115.25
137	ULTRAWF		Filter-water,carbon   (Replaces: 241791601)			Immediately	$ 109.49
139	242009604		Base-water Filter   (Replaces: 242009601)			Immediately	$ 33.14
145	242120101		Support,rail				$ 76.59
151	242069701		Cover-water Filter				$ 62.24
154	242082401		Support				$ 76.22
157	241872201		Beam-crisper Cover				$ 53.85
210	241983816		Housing-water Filtr   (Replaces: 241983805)			Immediately	$ 73.71
212	241801801		Roller Assembly,crisper Pan   (Replaces: 5304479194)				$ 184.51
213	242010901		Roller Assy,deli Pan				$ 49.62
21A	241953902		Screw,no.8 - 18 X .380 ,3			Immediately	$ 17.11
24B	242068706		Shelf,fixed ,spill Safe			Immediately	$ 212.35
42A	242079402		Support,crspr Pan Rolle			Immediately	$ 43.10
47B	242082302		Glass,deli Cover		Appelez-nous	-
49B	242122301		Channel-shelf Mtg,side ,rh				$ 77.97
F145	242120102		Support,rail				$ 72.30
F154	242015001		Screw,8-18 X 1/2			Immediately	$ 16.30
F210	241998303		Mount-water Filter   (Replaces: 241998302)				$ 14.41
NI	5304453707		Screw,no.8-18   (Replaces: 241953901)			Immediately	$ 15.92
NI	242110264		Energy Guide		Appelez-nous	-

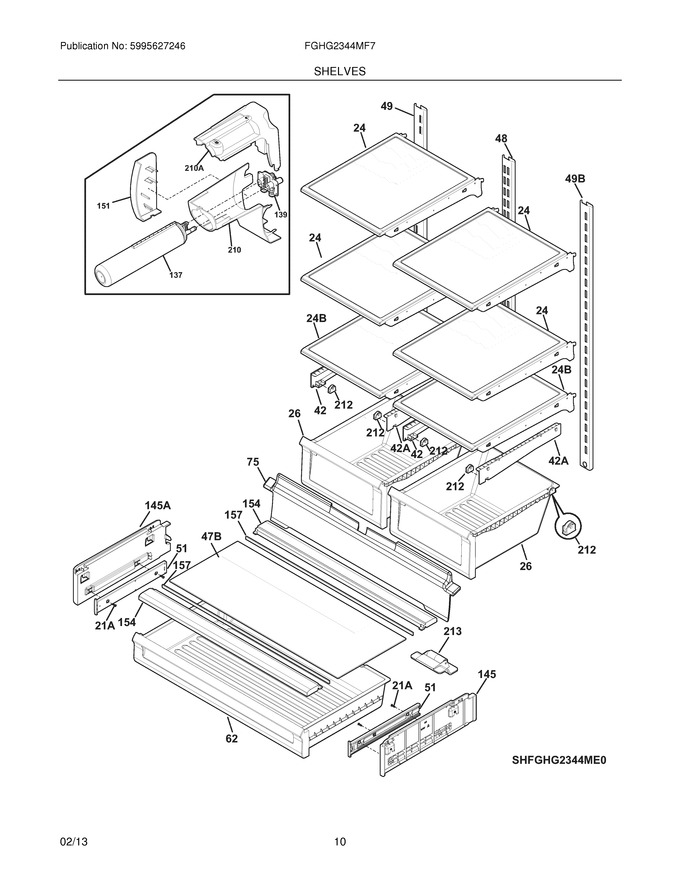

    View Diagram in Separate Window       Print Part List
