SELECT A DIAGRAM

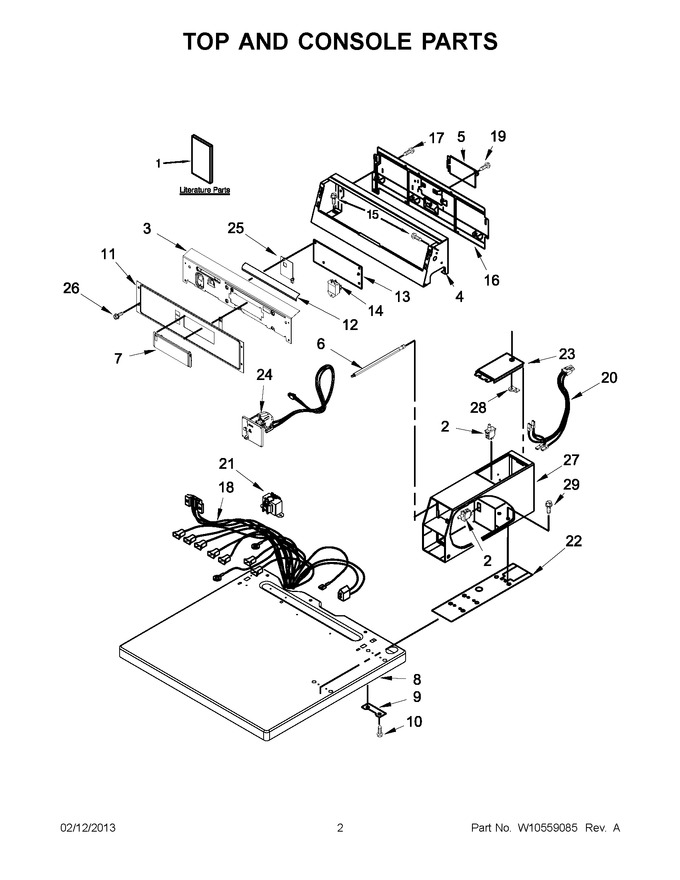

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10474273 | Installation Instructions |
|
- | |||||
| 1 | W10581519 | Wiring Diagram |
|
- | |||||
| 1 | W10183571 | Tech Sheet |
|
- | |||||
| 1 | W10296776 | Wiring Diagram |
|
- | |||||
| 2 | WPW10131838 | Switch, Vault Service Door (Replaces: W10131838) |
|
$ 21.52 | |||||
| 3 | W10461121 | Bracket, Back |
|
- | |||||
| 4 | W10461094 | Console |
|
$ 159.97 | |||||
| 5 | WPW10119283 | Cover, Terminal Block (Replaces: W10286180) |
|
$ 115.52 | |||||
| 6 | WPW10137319 | Bolt, Hex Bar (Replaces: W10137319) |
|
$ 73.17 | |||||
| 7 | W11637765 | Cover, Display (Replaces: W10267645) |
|
$ 59.65 | |||||
| 8 | WPW10136707 | Top (white) (Replaces: W10136707) |
|
$ 320.56 | |||||
| 9 | 3347825 | Plate, Mounting |
|
- | |||||
| 10 | W10841059 | Screw (Replaces: 98445) |
|
- | |||||
| 11 | W10461111 | Fascia |
|
- | |||||
| 12 | W10133515 | Deflector Switch Assembly |
|
- | |||||
| 13 | WPW10471563 | Control Board (Replaces: W10471563) |
|
$ 386.74 | |||||
| 14 | W10133335 | Relay, Motor |
|
$ 40.14 | |||||
| 15 | WP90767 | Screw (Replaces: 8533971) |
|
Immediately | $ 7.04 | ||||
| 16 | W11089934 | Panel, Rear (upper) (Replaces: 3978608) |
|
$ 256.84 | |||||
| 17 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.01 | ||||
| 18 | W10111009 | Wiring Harness (main Mde18pdazw0) |
|
$ 260.62 | |||||
| 18 | W10130183 | Wiring Harness (main Mde18pdayw0) |
|
- | |||||
| 19 | W11808444 | Screw (Replaces: 98139) |
|
- | |||||
| 20 | W11096090 | Wire, Harnes Sensor Switch (Replaces: W10211244) |
|
$ 11.48 | |||||
| 21 | WPW10131839 | Transformer (Replaces: W10131839) |
|
Immediately | $ 120.20 | ||||
| 22 | WP3954812 | Cushion, Meter Case (Replaces: 3954812) |
|
$ 27.99 | |||||
| 23 | W11283272 | Assembly, Service Door (Replaces: 3351136) |
|
$ 95.29 | |||||
| 24 | W11643135 | Coin Drop Assy. (assembly, Dual Coin Drop Mde18pdazw0) (Replaces: W10198395) |
|
$ 512.07 | |||||
| 24 | WPW10133242 | Coin Drop Assy. (assembly, Single Coin Drop Mde18pdayw0) (Replaces: W10133242) |
|
$ 126.51 | |||||
| 25 | W10161476 | Shield, Probing |
|
$ 70.65 | |||||
| 26 | WPW10131119 | Screw (Replaces: W10386302) |
|
$ 6.26 | |||||
| 27 | WPW10529176 | Meter Case (Replaces: W10529176) |
|
$ 273.48 | |||||
| 28 | WP90406 | Nut, Cage (Replaces: 90406) |
|
$ 7.33 | |||||
| 29 | W11715721 | Screw (Replaces: 3349065) |
|
$ 6.41 |
