SELECT A DIAGRAM

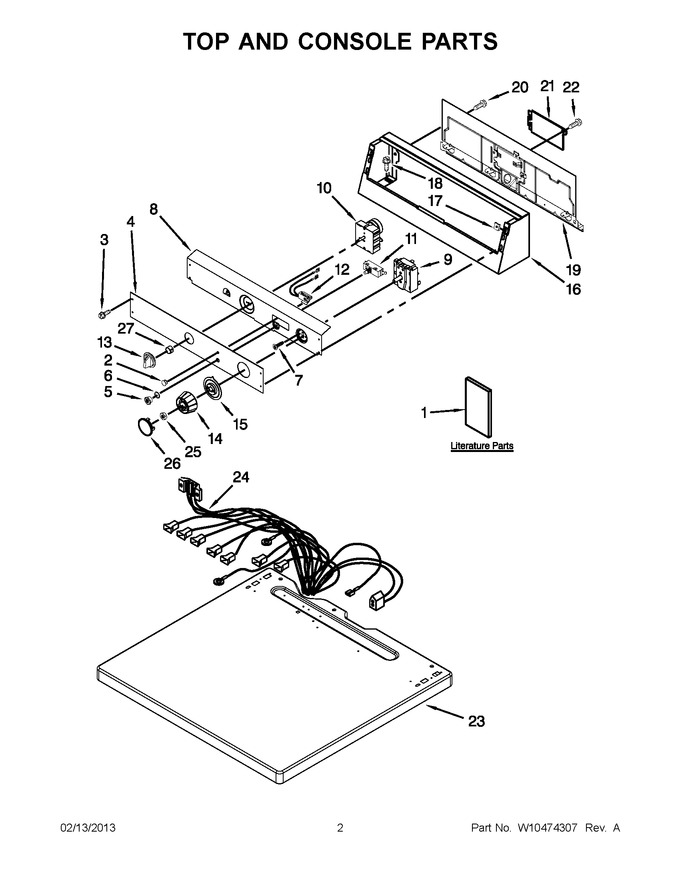

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Burner Assembly


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10184576		Instructions, Installation		Appelez-nous	-
1	W10167625		Wiring Diagram		Appelez-nous	-
2	WPW10133502		Lights, Indicator Assembly   (Replaces: W10133502)				$ 11.58
3	W11693756		Screw   (Replaces: 359625)			Immediately	$ 12.65
4	W10135184		Facia-overlay				$ 78.25
5	W10146429		Nut, 8-32 X 3/8		Appelez-nous	-
6	WPW10139799		Washer   (Replaces: W10139799)				$ 8.32
7	W10139100		Screw				$ 11.15
8	W10124216		Bracket, Control		Appelez-nous	-
9	WPW10157942		Timer, Dryer   (Replaces: W10157942)				$ 300.75
10	WPW10327105		Switch, Cycle Selection   (Replaces: W10327105)				$ 145.49
11	WPW10149462		Switch, Push-to-start   (Replaces: W10149462)				$ 60.77
12	W10662107		Lamp, Indicator   (Replaces: W10130072)				$ 23.30
13	W11643382		Knob   (Replaces: W10133507)			Immediately	$ 23.64
14	W11232017		Knob, Control   (Replaces: W10133505)				$ 11.13
15	W10133506		Skirt, Dial				$ 17.06
16	W10235158		Console   (Replaces: W10205150)		Appelez-nous	-
17	WPW10131123		Nut, ``u``   (Replaces: W10131123)				$ 6.94
18	WP488627		Screw   (Replaces: 342055)				$ 6.81
19	285909		Panel, Rear Console   (Replaces: 8317305)				$ 224.07
20	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 7.01
21	W10819767		Cover, Terminal Block   (Replaces: 8317340)		Appelez-nous	-
22	WP90767		Screw   (Replaces: 3390814)			Immediately	$ 7.04
23	WPW10136704		Top   (Replaces: W10136704)				$ 234.39
24	W10153155		Harness, Main		Appelez-nous	-
25	W10155650		Nut, Hex				$ 12.03
26	WPW10133501		Cap, Knob   (Replaces: W10133501)				$ 54.76
27	W10140928		Clip, Knob				$ 5.22

    View Diagram in Separate Window       Print Part List
