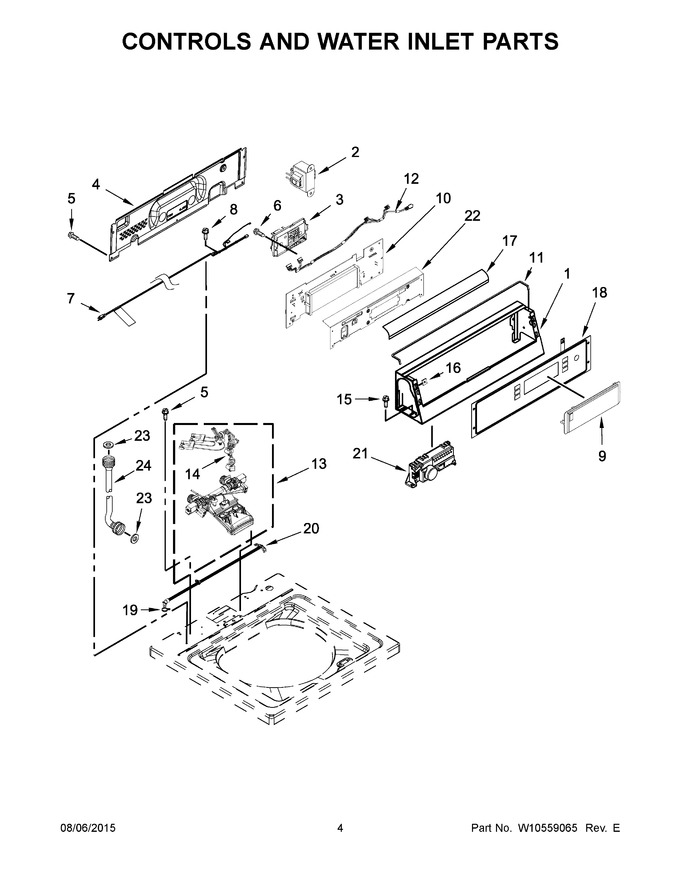

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10461094 | Console |
|
$ 159.97 | |||||
| 2 | WPW10131839 | Transformer (Replaces: W10131839) |
|
Immediately | $ 120.20 | ||||
| 3 | W10491728 | Control Unit Assembly |
|
$ 280.04 | |||||
| 4 | WPW10461159 | Panel, Console Rear Cover (Replaces: W10461159) |
|
Immediately | $ 308.94 | ||||
| 5 | WP489069 | Screw (Replaces: 1157158) |
|
Immediately | $ 7.07 | ||||
| 6 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 7.04 | ||||
| 7 | W10472992 | Cord, Power |
|
- | |||||
| 8 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 6.98 | ||||
| 9 | W11637765 | Cover, Display (Replaces: W10267645) |
|
$ 59.65 | |||||
| 10 | WPW10647075 | User Interface (Replaces: W10647075) |
|
$ 236.48 | |||||
| 11 | WPW10157932 | Seal, Foam (Replaces: W10157932) |
|
Immediately | $ 7.25 | ||||
| 12 | W10480949 | Harness, Upper |
|
- | |||||
| 13 | WPW10486031 | Inlet Assembly, Water (Replaces: W10486031) |
|
Immediately | $ 174.74 | ||||
| 14 | W10472990 | Harness, Valve |
|
$ 138.77 | |||||
| 15 | WP3390631 | Screw (Replaces: 3390631) |
|
$ 7.04 | |||||
| 16 | WPW10131123 | Nut, "u (Replaces: W10131123) |
|
$ 6.94 | |||||
| 17 | W10133515 | Deflector Switch Assembly |
|
- | |||||
| 18 | W10461104 | Fascia |
|
- | |||||
| 19 | WP596669 | Clamp, Hose (Replaces: W10117298) |
|
Immediately | $ 7.56 | ||||
| 20 | WPW10461189 | Assembly, Hose (Replaces: W10461189) |
|
$ 30.32 | |||||
| 21 | WPW10482833 | Module, Electronic Release (Replaces: W10482833) |
|
$ 166.66 | |||||
| 22 | W10461068 | Back Bracket, Control Panel |
|
- | |||||
| 23 | WP16123 | Washer, Inlet Hose (Replaces: W10242307) |
|
$ 6.93 | |||||
| 24 | W10458855 | Hose, Water Inlet (hot) |
|
- | |||||
| 24A | W10458856 | Hose, Water Inlet (cold) |
|
- |
