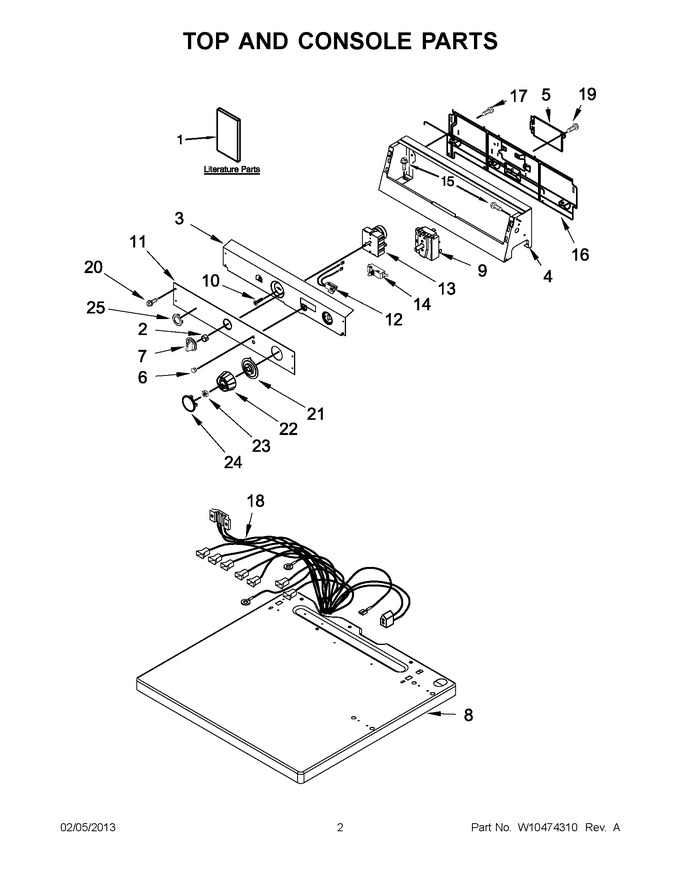

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10474269 | Installation Instructions |
|
- | |||||
| 1 | W10296778 | Wiring Diagram |
|
- | |||||
| 2 | W10140928 | Clip, Knob |
|
$ 5.22 | |||||
| 3 | W10461071 | Back Bracket, Non-coin |
|
- | |||||
| 4 | W11124005 | Console (Replaces: W10461095) |
|
$ 204.36 | |||||
| 5 | WPW10119283 | Cover, Terminal Block (Replaces: W10286180) |
|
$ 115.52 | |||||
| 6 | WPW10133502 | Lights, Indicator Assembly (Replaces: W10133502) |
|
$ 11.58 | |||||
| 7 | W10492415 | Knob |
|
$ 17.68 | |||||
| 8 | W10492414 | Top (white) |
|
- | |||||
| 9 | WPW10157942 | Timer, Dryer (Replaces: W10157942) |
|
$ 300.75 | |||||
| 10 | W10139100 | Screw |
|
$ 11.15 | |||||
| 11 | W10461114 | Fascia (Replaces: W10461063) |
|
- | |||||
| 12 | W10662107 | Lamp-indicator (Replaces: W10130072) |
|
$ 23.30 | |||||
| 13 | WPW10327105 | Switch, Cycle Selection (Replaces: W10327105) |
|
$ 145.49 | |||||
| 14 | W11097274 | Switch, Pts (Replaces: W10488054) |
|
$ 60.71 | |||||
| 15 | WP90767 | Screw (Replaces: 8533971) |
|
Immediately | $ 7.04 | ||||
| 16 | 285909 | Panel, Rear Console (Replaces: 8317305) |
|
$ 224.07 | |||||
| 17 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.01 | ||||
| 18 | W10153137 | Harness, Main |
|
- | |||||
| 19 | W11808444 | Screw (Replaces: 98139) |
|
- | |||||
| 20 | WPW10131119 | Screw (Replaces: W10386302) |
|
$ 6.26 | |||||
| 21 | W10492417 | Skirt, Dial |
|
- | |||||
| 22 | W10492416 | Knob, Control |
|
- | |||||
| 23 | W10155650 | Nut, Hex |
|
$ 12.03 | |||||
| 24 | W10492418 | Cap, Knob |
|
- | |||||
| 25 | W10510149 | Bezel - Pts |
|
Immediately | $ 24.54 |
