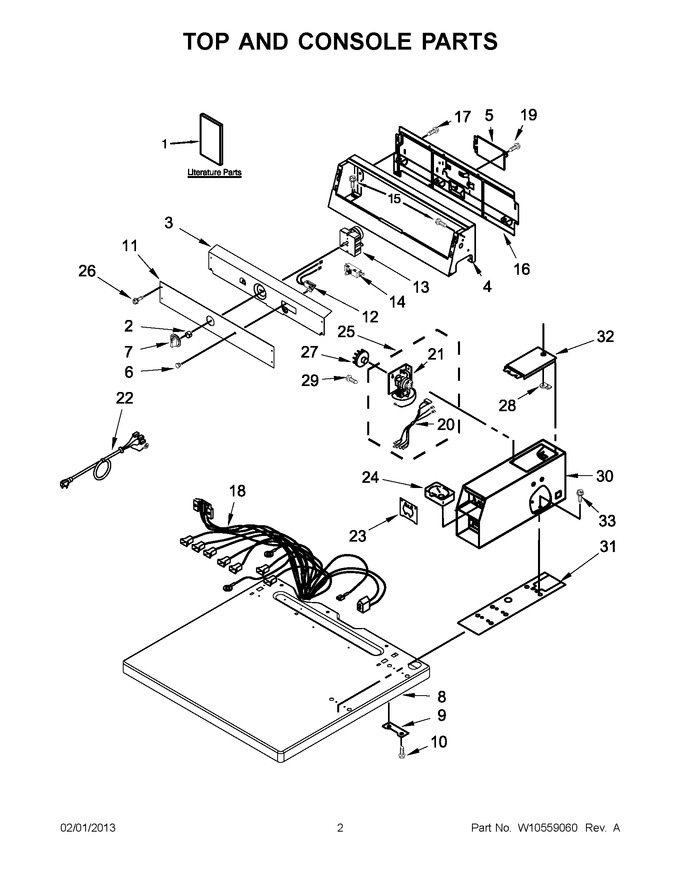

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10474269 | Installation Instructions |
|
- | |||||
| 2 | W10140928 | Clip, Knob |
|
$ 5.22 | |||||
| 3 | W10461070 | Bracket Control |
|
$ 127.69 | |||||
| 4 | W10461094 | Console |
|
$ 159.97 | |||||
| 5 | WPW10119283 | Cover, Terminal Block (Replaces: W10286180) |
|
$ 115.52 | |||||
| 6 | WPW10133502 | Lights, Indicator Assembly (Replaces: W10133502) |
|
$ 11.58 | |||||
| 7 | W10492415 | Knob |
|
$ 17.68 | |||||
| 8 | WPW10136707 | Top (white (cem2763bq00) (Replaces: W10136707) |
|
$ 320.56 | |||||
| 9 | 3347825 | Plate-mounting |
|
- | |||||
| 10 | W10841059 | Screw (Replaces: 98445) |
|
- | |||||
| 11 | W10461113 | Fascia (Replaces: W10461062) |
|
- | |||||
| 12 | W10662107 | Lamp-indicator (Replaces: W10130072) |
|
$ 23.30 | |||||
| 13 | WPW10327105 | Switch, Cycle Selection (Replaces: W10327105) |
|
$ 145.49 | |||||
| 14 | W11097274 | Switch, Pts (Replaces: W10488054) |
|
$ 60.71 | |||||
| 15 | WP90767 | Screw (Replaces: 8533971) |
|
Immediately | $ 7.04 | ||||
| 16 | W11089934 | Panel, Rear (upper) (Replaces: 3978608) |
|
$ 256.84 | |||||
| 17 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.01 | ||||
| 18 | W10164588 | Harness, Main |
|
$ 216.88 | |||||
| 19 | W11808444 | Screw (Replaces: 98139) |
|
- | |||||
| 20 | W10177791 | Harness, Timer |
|
- | |||||
| 21 | W11451464 | Timer (Replaces: W10045440) |
|
Immediately | $ 277.04 | ||||
| 22 | W11095079 | Cord, Power (Replaces: 3394208) |
|
Immediately | $ 118.49 | ||||
| 23 | 279950 | Plate, Adapter (Replaces: 3954761) |
|
Immediately | $ 26.00 | ||||
| 24 | WP385421 | Funnel, Coin (Replaces: 385421) |
|
Immediately | $ 66.78 | ||||
| 25 | WPW10521398 | Timer & Harness Assembly (Replaces: W10521398) |
|
Immediately | $ 246.63 | ||||
| 26 | WPW10131119 | Screw (Replaces: W10386302) |
|
$ 6.26 | |||||
| 27 | WP3387974 | Timing Cam (Replaces: 3387974) |
|
$ 7.49 | |||||
| 27 | 51-161-6 | Timing Cam, 6 Pin (30 Minutes) (Replaces: 343777) |
|
$ 31.07 | |||||
| 28 | WP90406 | Nut, Cage (Replaces: 90406) |
|
$ 7.33 | |||||
| 29 | 339805 | Screw |
|
$ 12.05 | |||||
| 30 | WPW10461200 | Case, Meter (Replaces: W10461200) |
|
Immediately | $ 344.90 | ||||
| 31 | WP3954812 | Cushion, Meter Case (Replaces: 3954812) |
|
$ 27.99 | |||||
| 32 | W11283272 | Assembly, Service Door (Replaces: 3351136) |
|
$ 95.29 | |||||
| 33 | W11715721 | Screw (Replaces: 3349065) |
|
$ 6.41 |
