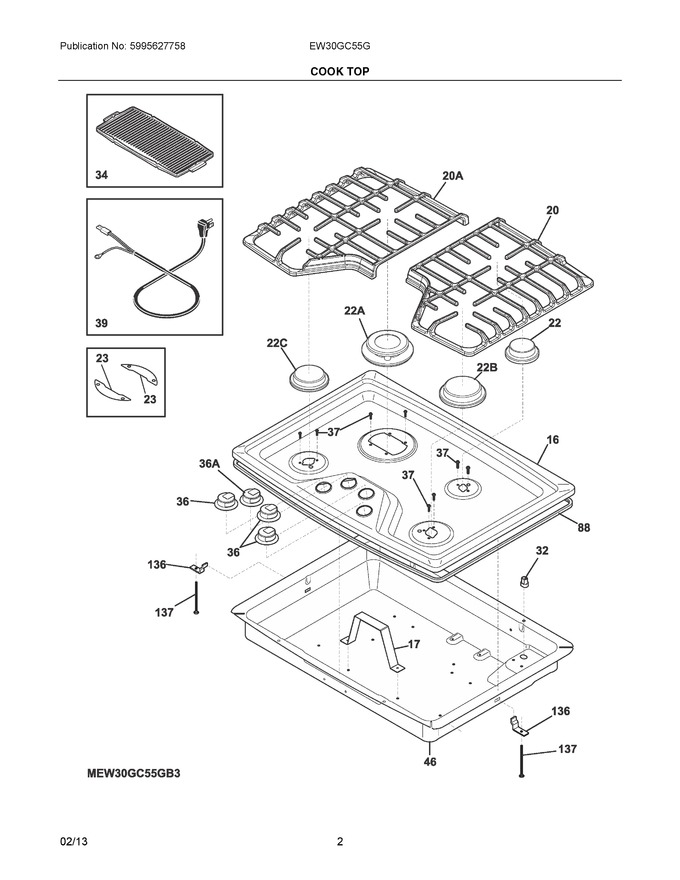

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318379024		Maintop, Stainless, W/graphics		Appelez-nous	-
17	318406301		Bracket, Retainer		Appelez-nous	-
20	318391408		Grate, Top Burner, Black, Rh				$ 277.12
22	316548600		Cap, Burner, 5k, Black				$ 87.70
32	5304513507		Strain Relief   (Replaces: 3201437)				$ 9.10
34	318251608		Griddle, 30" Cooktop Optional Accessory				$ 191.73
36	318905202		Knob, Burner, Stainless, (3)				$ 114.35
37	316240600		Screw, Hex Wash, 6-32 X .485   (Replaces: 5304472956)			Immediately	$ 12.13
39	318144006		Cord, Service		Appelez-nous	-
46	318278905		Box, Burner		Appelez-nous	-
88	318280120		Gasket, Cooktop, 93				$ 138.29
136	318264301		Support, Box, (2)				$ 42.95
137	5303285443		Screw, Lock Bracket, 10-24 X 2.00		Appelez-nous	-
20A	318391505		Grate, Top Burner, Black, Lh				$ 275.00
22A	316511502		Cap, Burner, 18k, Black				$ 248.45
22B	316548800		Cap, Burner, 14k, Black				$ 131.46
22C	316548700		Cap, Burner, 9.5k, Black, (2)				$ 134.23
36A	318905205		Knob, Burner, Stainless, Dual				$ 127.40
NI	318163602		Cleaner, Stainless Steel				$ 26.51
NI	5303323171		Tape, Aluminum, 2		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
