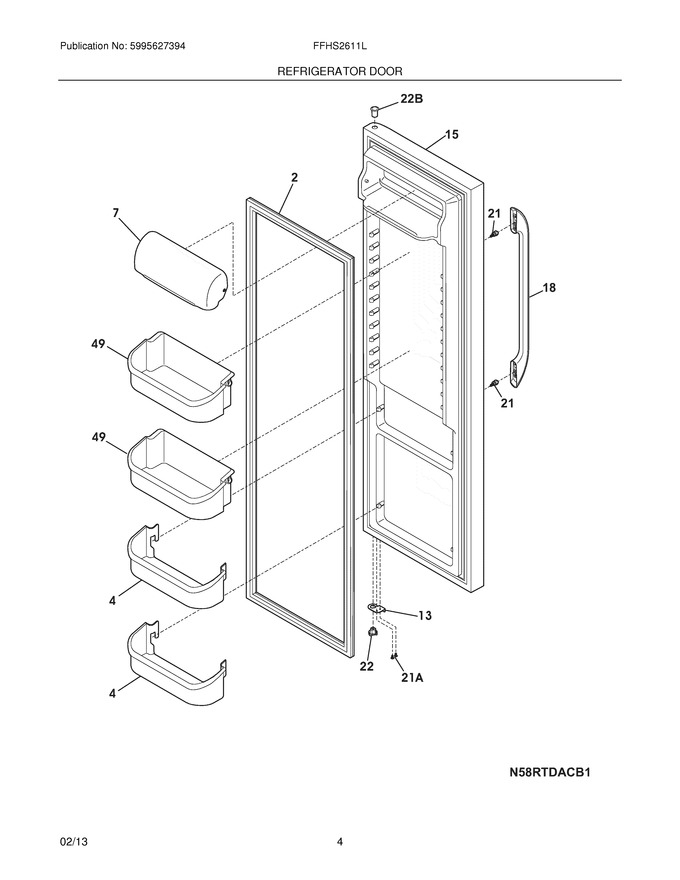

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 241786005 | Refrigerator Door Gasket, Grey, Magnetic |
|
Immediately | $ 225.62 | ||||
| 4 | 240323002 | Bin-door,pseudo ,clear ,bottom |
|
Immediately | $ 67.21 | ||||
| 7 | 240326203 | Door-dairy |
|
$ 40.37 | |||||
| 13 | 5303918455 | Door Stop,black,ref (Replaces: 240537105) |
|
$ 142.04 | |||||
| 15 | 240451969 | Door-refr,black ,complete Assy |
|
$ 387.08 | |||||
| 18 | 242059102 | Handle-door,black |
|
$ 88.69 | |||||
| 21 | 218781101 | Screw,pan Head ,8-18 X 0.625 (Replaces: 218781100) |
|
$ 15.60 | |||||
| 22 | 240328203 | Bearing-hinge,black ,closer |
|
Immediately | $ 27.23 | ||||
| 49 | 240356401 | Bin-door,gallon |
|
Immediately | $ 85.64 | ||||
| 21A | 5303323137 | Screw,10-32 X 1/2 (Replaces: 240598401) |
|
$ 11.88 | |||||
| 21A | 5303323137 | Screw,10-32 X 1/2 (Replaces: 240598402) |
|
$ 11.88 | |||||
| 21A | 5304455650 | Screw,hex Washer Head ,8-15a X 0.625 ,low Profile (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 22B | 240328404 | Bearing-hinge,black ,upper |
|
$ 22.87 | |||||
| NI | 218252201 | Screw,no.8 Truss Hd ,10-32ca X 0.500 (Replaces: 218252200) |
|
Immediately | $ 14.18 | ||||
| NI | 218252201 | Screw,no.8 Truss Hd ,10-32ca X 0.500 |
|
Immediately | $ 14.18 |
