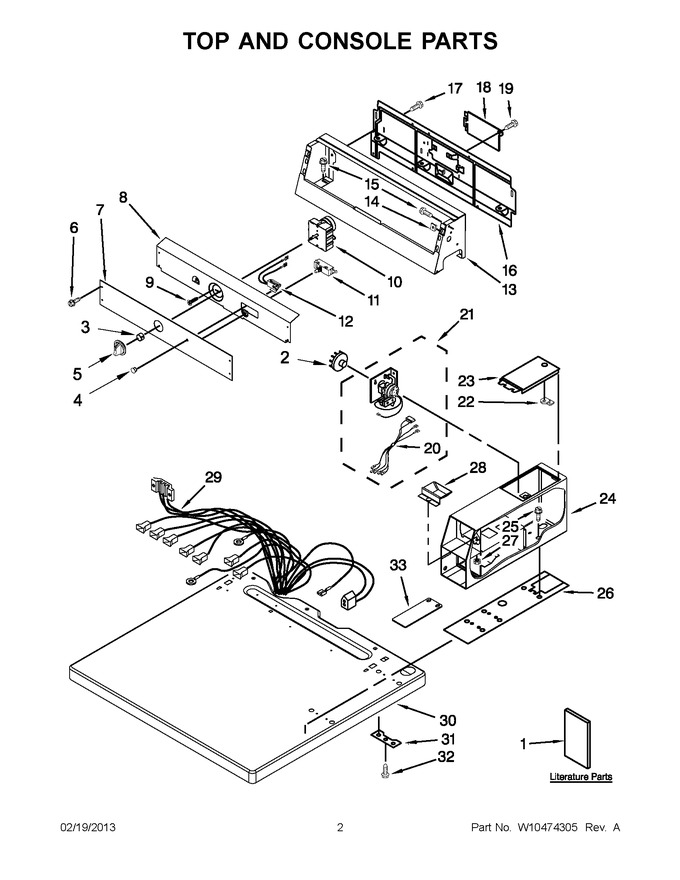

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Burner Assembly
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10474273 | Installation Instructions |
|
- | |||||
| 1 | W10167622 | Wiring Diagram |
|
- | |||||
| 2 | WP3387974 | Timing Cam (Replaces: 3387974) |
|
$ 7.49 | |||||
| 2 | 51-161-6 | Timing Cam, 6 Pin (30 Minutes) (Replaces: 343777) |
|
$ 31.07 | |||||
| 3 | W10140928 | Clip, Knob |
|
$ 5.22 | |||||
| 4 | WPW10133502 | Lights, Indicator Assembly (Replaces: W10133502) |
|
$ 11.58 | |||||
| 5 | W11643382 | Knob (Replaces: W10133507) |
|
Immediately | $ 23.64 | ||||
| 6 | WPW10131119 | Screw (Replaces: W10386302) |
|
$ 6.26 | |||||
| 7 | W10461109 | Fascia |
|
- | |||||
| 8 | W10461070 | Bracket Control |
|
$ 127.69 | |||||
| 9 | W10139100 | Screw |
|
$ 11.15 | |||||
| 10 | WPW10327105 | Switch, Cycle Selection (Replaces: W10327105) |
|
$ 145.49 | |||||
| 11 | W11097274 | Switch, Pts (Replaces: W10488054) |
|
$ 60.71 | |||||
| 12 | W10662107 | Lamp-indicator (Replaces: W10130072) |
|
$ 23.30 | |||||
| 13 | W10461094 | Console |
|
$ 159.97 | |||||
| 14 | WPW10131123 | Nut, ``u`` (Replaces: W10131123) |
|
$ 6.94 | |||||
| 15 | WPW10139210 | Screw (Replaces: W10139210) |
|
$ 6.75 | |||||
| 16 | W11089934 | Panel, Rear (upper) (Replaces: 3978608) |
|
$ 256.84 | |||||
| 17 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.01 | ||||
| 18 | W10819767 | Cover, Terminal Block (Replaces: 8317340) |
|
- | |||||
| 19 | 303776 | No Description Avaliable |
|
- | |||||
| 20 | W10177793 | Harness, Timer |
|
$ 67.09 | |||||
| 21 | WPW10135260 | Timer 7 Harness Assembly (Replaces: W10135260) |
|
$ 357.80 | |||||
| 22 | W11401086 | Cam, Commercial Lock (Replaces: W10156125) |
|
$ 6.17 | |||||
| 23 | W11283272 | Assembly, Service Door (Replaces: 3351136) |
|
$ 95.29 | |||||
| 24 | WPW10529172 | Meter Case (Replaces: W10529172) |
|
$ 345.34 | |||||
| 25 | W11715721 | Bolt, Meter Case (screw) (Replaces: 3349065) |
|
$ 6.41 | |||||
| 26 | WP3954812 | Cushion, Meter Case (Replaces: 3954812) |
|
$ 27.99 | |||||
| 27 | W10139060 | Nut, 1/4-20 |
|
- | |||||
| 28 | W10133509 | Funnel, Coin |
|
$ 74.49 | |||||
| 29 | W10153108 | Harness, Main |
|
- | |||||
| 30 | WPW10136707 | White (Replaces: W10136707) |
|
$ 320.56 | |||||
| 31 | 3347825 | Plate, Mounting |
|
- | |||||
| 32 | W10841059 | Screw (Replaces: 98445) |
|
- | |||||
| 33 | WPW10153513 | Extension (Replaces: W10153513) |
|
$ 74.57 |
