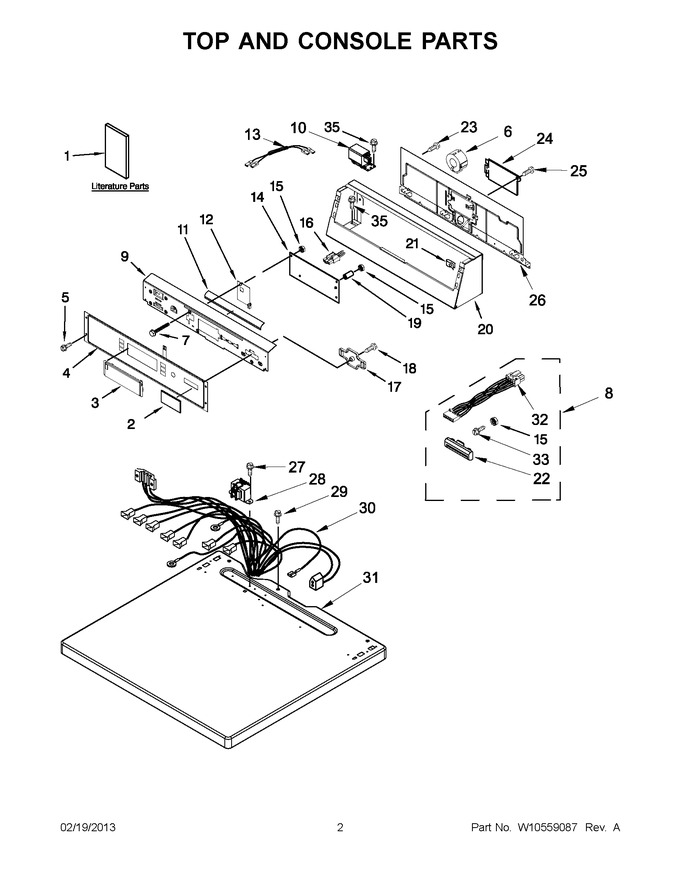

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Burner Assembly
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10143804 | Wiring Diagram |
|
- | |||||
| 1 | W10474273 | Installation Instructions |
|
- | |||||
| 1 | W10135291 | Instructions, Installation (card Reader) |
|
- | |||||
| 1 | W10183571 | Tech Sheet |
|
- | |||||
| 2 | W11164066 | Cover, Card Reader (Replaces: W10137769) |
|
- | |||||
| 3 | W11637765 | Cover, Display (Replaces: W10267645) |
|
$ 59.65 | |||||
| 4 | W10461112 | Fascia |
|
- | |||||
| 5 | WPW10131119 | Screw (Replaces: W10386302) |
|
$ 6.26 | |||||
| 6 | 3407172 | Choke, Harness |
|
- | |||||
| 7 | W11117300 | Screw (Replaces: W10137322) |
|
- | |||||
| 8 | WPW10135415 | Card Reader, Conversion Kit (Replaces: W10135415) |
|
$ 63.34 | |||||
| 9 | W10461122 | Bracket, Control |
|
- | |||||
| 10 | WPW10367632 | Filter, Rfi (Replaces: W10306592) |
|
$ 110.00 | |||||
| 11 | W10133515 | Deflector Switch Assembly |
|
- | |||||
| 12 | W10161476 | Shield, Probing |
|
$ 70.65 | |||||
| 13 | W10175650 | Jumper-line Filter |
|
- | |||||
| 14 | WPW10471563 | Control Board (Replaces: W10471563) |
|
$ 386.74 | |||||
| 15 | WPW10139046 | Nut, 6-32 (Replaces: W10139046) |
|
$ 7.91 | |||||
| 16 | W11129439 | Jumper, Switch Service/vault (Replaces: W10133282) |
|
$ 15.14 | |||||
| 17 | W11775266 | Retainer, Card Reader Cover (Replaces: W10137770) |
|
- | |||||
| 18 | 3400618 | Screw |
|
$ 58.23 | |||||
| 19 | W11117166 | Standoff, Circuit Board (Replaces: W10133514) |
|
- | |||||
| 20 | W11124005 | Console (Replaces: W10461095) |
|
$ 204.36 | |||||
| 21 | WPW10131123 | Nut, ``u`` (Replaces: W10131123) |
|
$ 6.94 | |||||
| 22 | WPW10131115 | Bezel (Replaces: W10131115) |
|
$ 7.63 | |||||
| 23 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.01 | ||||
| 24 | W10819767 | Cover, Terminal Block (Replaces: 8317340) |
|
- | |||||
| 25 | W11808444 | Screw (Replaces: 98139) |
|
- | |||||
| 26 | W10177312 | Panel, Rear (upper) |
|
- | |||||
| 27 | WP90767 | Screw (Replaces: 8533971) |
|
Immediately | $ 7.04 | ||||
| 28 | WPW10131839 | Transformer (Replaces: W10131839) |
|
Immediately | $ 120.20 | ||||
| 29 | W11676450 | Screw, (mounts Dryer To Dryer Supports) (Replaces: 3400000) |
|
$ 12.65 | |||||
| 30 | W10130190 | Harness, Main |
|
Immediately | $ 281.21 | ||||
| 31 | WPW10136704 | Top (Replaces: W10136704) |
|
$ 234.39 | |||||
| 32 | W10858740 | Card Reader, Harness (Replaces: W10133304) |
|
$ 21.56 | |||||
| 33 | WPW10143462 | Screw (Replaces: W10143462) |
|
$ 5.40 |
