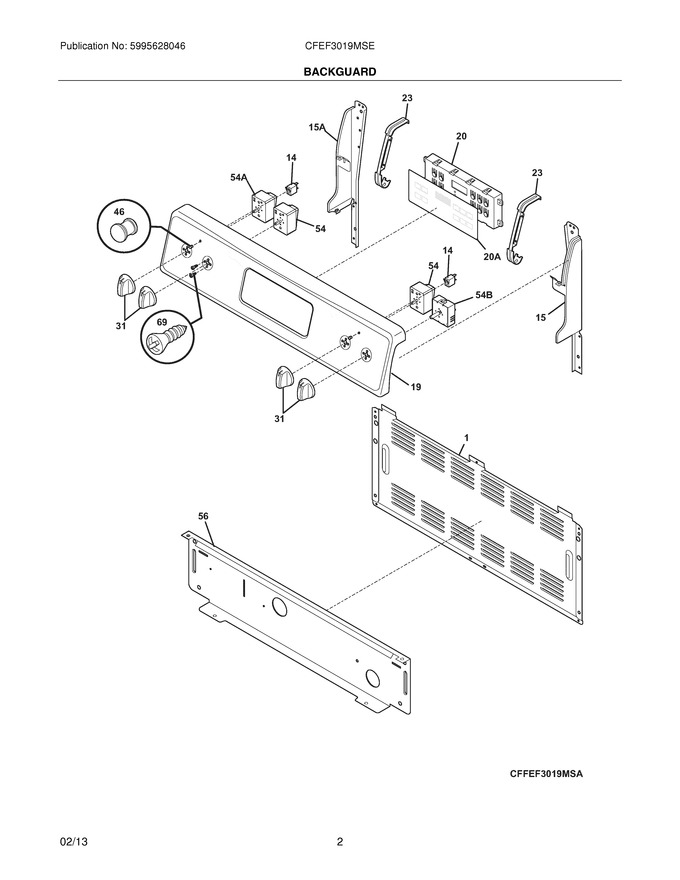

03 - Backguard


05 - Body


07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316281802		Shield,backguard ,rear Wall   (Replaces: 316281800)				$ 57.64
14	316022500		Light/lamp,indicator ,125 V			Immediately	$ 53.57
15	316411405		Support,backguard ,black ,rh				$ 83.95
19	316456542		Panel,backguard ,black/stainless ,w/overlay				$ 148.10
23	316441600		Bracket-clock Mtg,black				$ 20.48
31	316543801		Knob,control ,black ,(4)			Immediately	$ 55.38
46	316437900		Lens,indicator Light				$ 11.45
56	316234045		Shield,backguard ,black ,inner   (Replaces: 316234013)				$ 66.74
69	5303288565		Screw,truss Sqdr ,8-32 X 3/16 ,switch Mtg				$ 3.12
15A	316411404		Support,backguard ,black ,lh				$ 83.95
20A	316419353		Overlay,clock ,black ,es330i			Immediately	$ 39.43
F20	5304510064		Clock/timer,electronic ,es330   (Replaces: 316557236)			Immediately	$ 336.49
F54	316436000		Switch,infinite ,small Element			Immediately	$ 80.34
F54A	316436001		Switch,infinite ,large Element			Immediately	$ 51.68
F54B	316238201		Switch,infinite Radian ,dual			Immediately	$ 89.00
NI	316089500		Screw,10-16 X .486				$ 13.46
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
