01 - Cover
03 - Control Panel
05 - Door
07 - Tub
09 - Motor & Pump
11 - Frame
13 - Racks
14 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

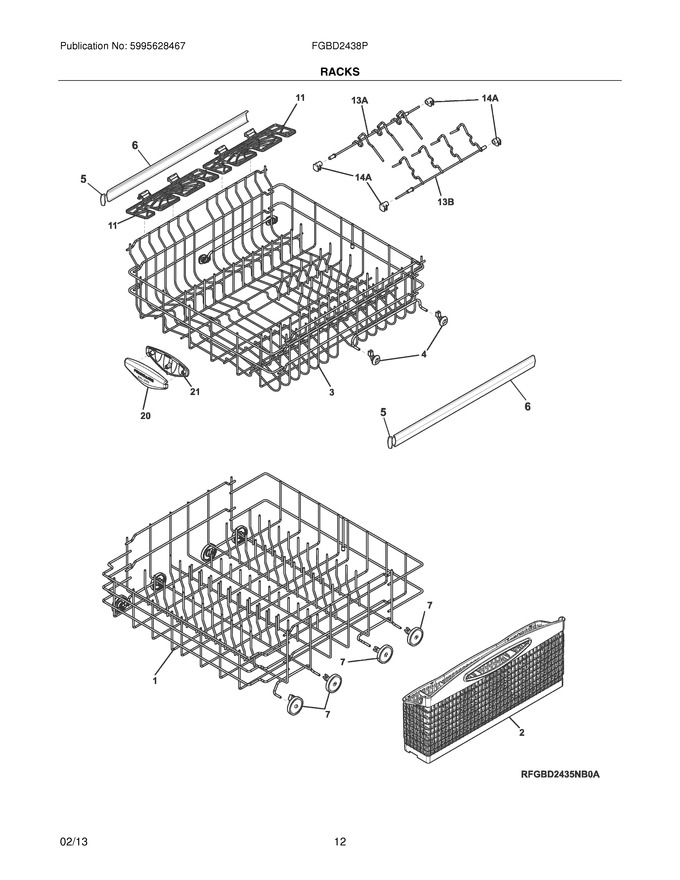

| 1 | 154876003 | Rack Assembly,lower ,nylon ,grey ,w/wheels |
|
- | |||||
| 2 | 5304535382 | Basket,silverware ,grey (Replaces: 154556102) |
|
Immediately | $ 25.43 | ||||
| 3 | 154866508 | Rack Assembly,upper ,nylon ,grey |
|
- | |||||
| 4 | 154522902 | Wheel & Bushing Assy,grey ,upper Rack ,(8) |
|
$ 39.54 | |||||
| 5 | 5304506510 | Cap,slide ,grey ,(4) (Replaces: 5304440996) |
|
Immediately | $ 7.23 | ||||
| 6 | 154597801 | Slide,rack ,upper ,(2) |
|
Immediately | $ 9.36 | ||||
| 7 | 5304532229 | Wheel & Bracket Assy,grey ,lower Rack ,(8) (Replaces: 154174503) |
|
Immediately | $ 12.75 | ||||
| 11 | 5304532945 | Shelf,cup ,half Width ,gray (Replaces: 154793904) |
|
$ 7.42 | |||||
| 20 | 5304506509 | Handle,pull ,front ,upper Rack (Replaces: 154732602) |
|
$ 13.74 | |||||
| 21 | 5304504913 | Handle,pull ,grey ,rear ,upper Rack (Replaces: 154530902) |
|
$ 13.74 | |||||
| 13A | 154740304 | Fence,multi,3 Wire ,lh ,grey ,upper Rack |
|
Immediately | $ 32.61 | ||||
| 13B | 5304532950 | Fence,multi,4 Wire ,rh ,grey ,upper Rack (Replaces: 154740404) |
|
Immediately | $ 19.76 | ||||
| 14A | 5304506508 | Bracket,multi Fence ,grey ,upper Rack ,(4) (Replaces: 154242003) |
|
Immediately | $ 5.79 | ||||
| NI | 154754701 | Screw,truss Hd ,8-18 Type Ab |
|
$ 3.55 |
