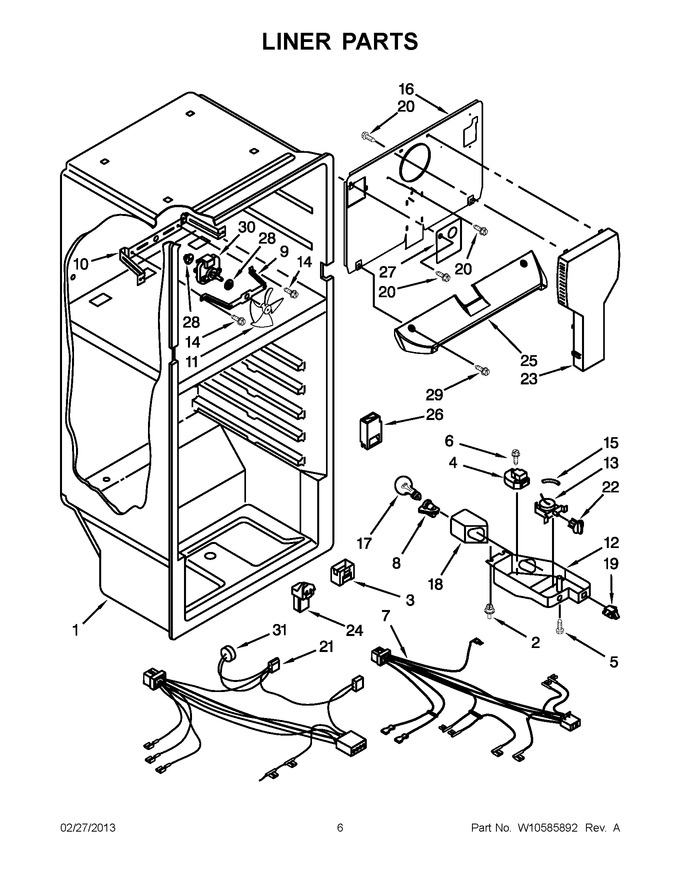

01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Shelf Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | 939962 | Rivet, Plastic |
|
$ 10.65 | |||||
| 3 | 2183061 | Air Diffuser Cover |
|
$ 36.62 | |||||
| 4 | W10822278 | Timer, Defrost (Replaces: 2188371) |
|
Immediately | $ 31.00 | ||||
| 5 | WP489174 | Screw (Replaces: 489174) |
|
$ 6.26 | |||||
| 6 | WP487353 | Screw (Replaces: 488693) |
|
$ 6.81 | |||||
| 7 | 2176927 | Wire Assembly, Control Box (Replaces: 2265929) |
|
- | |||||
| 8 | 4387478 | Socket, Light (Replaces: 2162085) |
|
Immediately | $ 99.14 | ||||
| 9 | WPW10180172 | Bracket, Fan Support (Replaces: W10180172) |
|
$ 36.24 | |||||
| 10 | 2197405 | Bracket, Fan Mounting |
|
$ 30.23 | |||||
| 11 | WP2169142 | Blade, Fan (Replaces: 2169142) |
|
Immediately | $ 39.07 | ||||
| 12 | 2264013 | Control Box |
|
- | |||||
| 13 | WPW10567140 | Thermostat (Replaces: 2325700) |
|
Immediately | $ 83.69 | ||||
| 14 | WP489399 | Screw (Replaces: 489399) |
|
$ 6.26 | |||||
| 15 | WP2196003 | Tube Barrier, Thermostat (Replaces: 1118680) |
|
$ 7.16 | |||||
| 16 | W10244012 | Cover, Evaporator |
|
$ 111.35 | |||||
| 17 | 8009 | Bulb, Light (Replaces: 527949) |
|
Immediately | $ 16.80 | ||||
| 18 | W11034434 | Light Shield (Replaces: 9791702) |
|
Immediately | $ 93.36 | ||||
| 19 | W11384469 | Switch, Rocker Arm(ref) (Replaces: 1118894) |
|
Immediately | $ 33.51 | ||||
| 20 | WP489478 | Screw (Replaces: 489478) |
|
$ 6.98 | |||||
| 21 | W10290501 | Wiring-freezer |
|
- | |||||
| 22 | WP2202885 | Knob, Control (Replaces: 2202885) |
|
$ 23.74 | |||||
| 23 | 9790408 | Air Tower |
|
$ 85.98 | |||||
| 24 | 2197052 | Assembly, Hood & Foil |
|
- | |||||
| 25 | 2261978 | Cover, Air Return, Freezer |
|
$ 135.09 | |||||
| 26 | 2221992 | Air Diffuser Assembly |
|
$ 35.67 | |||||
| 27 | WP2217784 | Cover, Hole (Replaces: 2217784) |
|
$ 40.47 | |||||
| 28 | WP2264462 | Grommet, Motor (Replaces: 2264462) |
|
Immediately | $ 39.57 | ||||
| 29 | WP489474 | Screw 8-18 X 1.00 (Replaces: 2262178) |
|
Immediately | $ 7.17 | ||||
| 30 | WPW10188389 | Motor, Fan (Replaces: W10188389) |
|
Immediately | $ 69.15 | ||||
| 31 | WPW10225581 | Defrost, Bi-metal (Replaces: 2266067) |
|
Immediately | $ 45.69 |
