SELECT A DIAGRAM

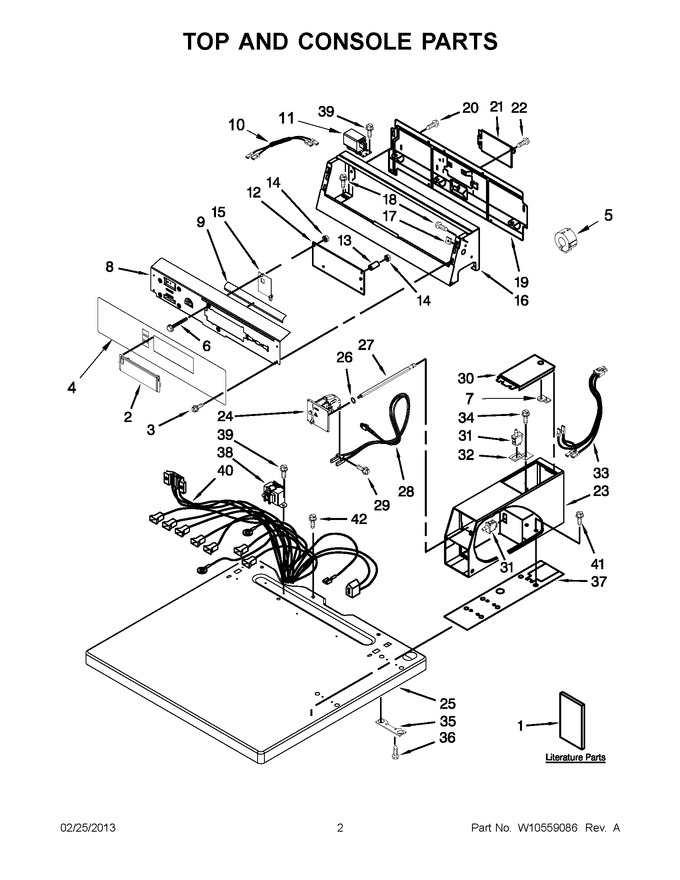

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Burner Assembly


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10474273		Installation Instructions		Appelez-nous	-
1	W10183571		Tech Sheet		Appelez-nous	-
2	W11637765		Cover, Display   (Replaces: W10267645)				$ 59.65
3	WPW10131119		Screw   (Replaces: W10386302)				$ 6.26
4	W10461060		Fascia		Appelez-nous	-
5	3407172		Choke, Harness		Appelez-nous	-
6	W11117300		Screw   (Replaces: W10137322)		Appelez-nous	-
7	W11401086		Cam, Commercial Lock   (Replaces: W10156125)				$ 6.17
8	W10461121		Bracket, Back		Appelez-nous	-
9	W10133515		Deflector Switch Assembly		Appelez-nous	-
10	W10175650		Jumper-line Filter		Appelez-nous	-
11	WPW10367632		Filter, Rfi   (Replaces: W10306592)				$ 110.00
12	WPW10471563		Control Board   (Replaces: W10471563)				$ 386.74
13	W11117166		Standoff, Circuit Board   (Replaces: W10133514)		Appelez-nous	-
14	WPW10139046		Nut, 6-32   (Replaces: W10139046)				$ 7.91
15	W10161476		Shield, Probing				$ 70.65
16	W10461094		Console				$ 159.97
17	WPW10131123		Nut, ``u``   (Replaces: W10131123)				$ 6.94
18	WPW10139210		Screw   (Replaces: W10139210)				$ 6.75
19	W10177313		Panel, Rear (upper)		Appelez-nous	-
20	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 7.01
21	W10819767		Cover, Terminal Block   (Replaces: 8317340)		Appelez-nous	-
22	W11808444		Screw   (Replaces: 98139)		Appelez-nous	-
23	W10529179		Meter Case (18pdaw)		Appelez-nous	-
23	W10529178		Meter Case (18pdax)		Appelez-nous	-
24	WPW10133242		Assembly, Single Coin Drop (18pdaw)   (Replaces: W10133242)				$ 126.51
24	W11643135		Assembly, Dual Coin Drop (18pdaxw)   (Replaces: W10198395)				$ 512.07
25	WPW10136707		Top (white)   (Replaces: W10136707)				$ 320.56
26	W11170663		Washer, Lock   (Replaces: W10068270)				$ 3.89
27	WPW10137319		Bolt, Hex Bar   (Replaces: W10137319)				$ 73.17
28	WPW10247389		Coin Optic Sensor Assembly   (Replaces: W10247389)			Immediately	$ 104.31
29	WP3395530		Screw   (Replaces: W10142655)				$ 6.93
30	W11283272		Assembly, Service Door   (Replaces: 3351136)				$ 95.29
31	WPW10131838		Switch-vault Service Door   (Replaces: W10131838)				$ 21.52
32	W11204533		Bracket, Service Switch   (Replaces: W10133508)		Appelez-nous	-
33	W11096090		Wire, Harnes Sensor Switch   (Replaces: W10211244)				$ 11.48
34	WPW10139210		Screw   (Replaces: W10139210)				$ 6.75
35	3347825		Plate, Mounting		Appelez-nous	-
36	W10841059		Screw   (Replaces: 98445)		Appelez-nous	-
37	WP3954812		Cushion, Meter Case   (Replaces: 3954812)				$ 27.99
38	WPW10131839		Transformer   (Replaces: W10131839)			Immediately	$ 120.20
39	WP90767		Screw   (Replaces: 8533971)			Immediately	$ 7.04
40	W10130190		Harness, Main			Immediately	$ 281.21
41	W11715721		Screw   (Replaces: 3349065)				$ 6.41
42	W11676450		Screw, (mounts Dryer To Dryer Supports)   (Replaces: 3400000)				$ 12.65
