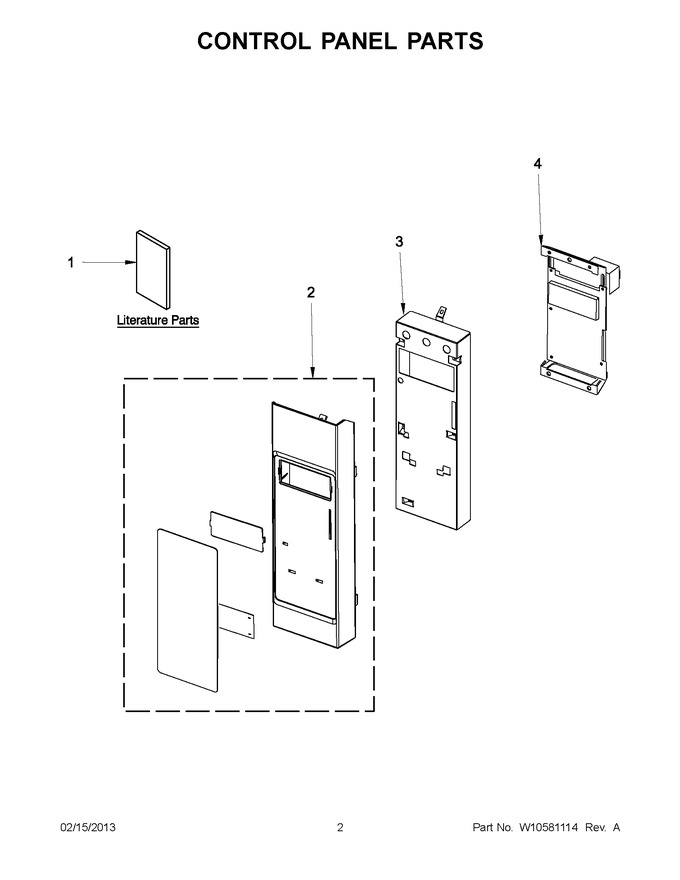

01 - Control Panel Parts


02 - Door Parts


03 - Interior And Ventilation Parts


04 - Air Flow Parts


05 - Turntable Parts


06 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10451742		Use And Care Guide		Appelez-nous	-
1	W10494362		Tech Sheet		Appelez-nous	-
1	W10451032		Quick Reference		Appelez-nous	-
1	W10247296		Installation Instructions		Appelez-nous	-
2	W10471679		Panel Assembly, Control (includes Lens And Membrane Switch) (white)		Appelez-nous	-
2	W10471682		Panel Assembly, Control (includes Lens And Membrane Switch) (biscuit)		Appelez-nous	-
2	W10444524		Panel Assembly, Control (includes Lens And Membrane Switch) (stainless)		Appelez-nous	-
2	W10471681		Panel Assembly, Control (includes Lens And Membrane Switch) (black)				$ 113.63
3	W10471683		Backer, Control Panel		Appelez-nous	-
4	W10476501		Microcomputer		Appelez-nous	-
