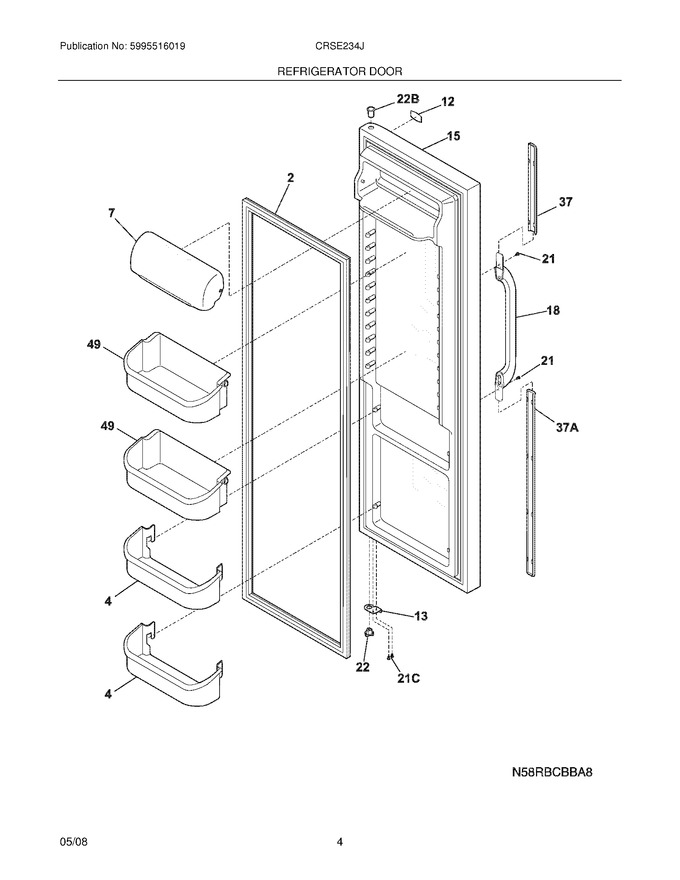

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241786015		Gasket-refr Door,white ,magnetic   (Replaces: 241786003)			Immediately	$ 94.66
4	240363702		Bin-door,2-liter			Immediately	$ 76.40
7	240338313		Door,dairy ,clear   (Replaces: 240338303)			Immediately	$ 80.80
12	240415206		Label-nameplate,bisque		Appelez-nous	-
13	240581903		Door Stop,bisque ,ref				$ 29.87
15	241629348		Door-refr,bisque ,complete Assy		Appelez-nous	-
18	218668405		Handle-door,bisque		Appelez-nous	-
21	5304465886		Screw,no.8-18 X 9/16 ,truss Hd		Appelez-nous	-
22	240328201		Bearing-hinge(ref),closer			Immediately	$ 17.72
37	218811647		Trim-handle,bisque ,upper		Appelez-nous	-
49	240324513		Bin-door,gallon		Appelez-nous	-
21C	5303323137		Screw,10-32 X 1/2   (Replaces: 240598402)				$ 11.88
22B	240328402		Bearing-hinge,natural ,upper				$ 19.85
37A	215782300		Lock-handle Trim,snap-in				$ 34.49
37A	218811646		Trim-handle,29.84`` ,bisque ,lower ,w/mtg Lock		Appelez-nous	-
