View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Control Panel
05 - Door
07 - Tub
09 - Motor & Pump
11 - Frame
13 - Racks
14 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:

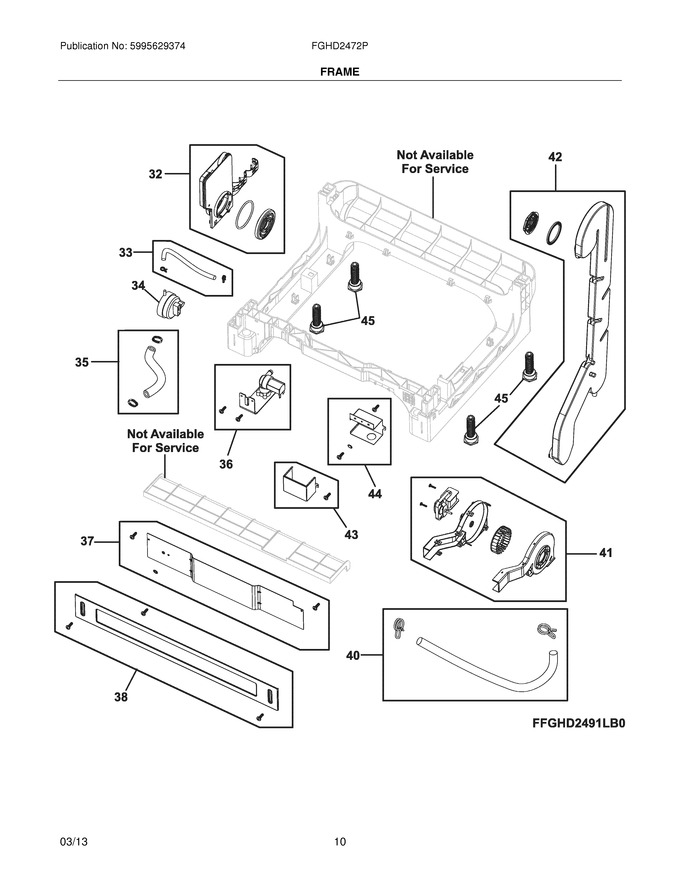

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 32 | 5304494065 | Brake Assembly,air (Replaces: 5304475604) |
|
Immediately | $ 92.30 | ||||
| 37 | 5304475609 | Support Assembly,kickplate ,w/screws |
|
$ 58.82 | |||||
| 38 | 5304475610 | Kickplate Assembly,black ,w/screws |
|
$ 90.72 | |||||
| 42 | 5304475614 | Duct Assembly,drying |
|
$ 160.55 | |||||
| 43 | 5304475615 | Cover Assembly,junction Box ,w/screw |
|
$ 17.64 | |||||
| 44 | 5304475616 | Box Assembly,junction ,w/screws-washer |
|
- | |||||
| 45 | 5304475617 | Leg,leveling ,(4) |
|
$ 23.63 | |||||
| F33 | 5304475605 | Hose Assembly,pressure Switch ,w/clamps |
|
$ 11.68 | |||||
| F34 | 5304516645 | Switch,pressure (Replaces: 5304475606) |
|
Immediately | $ 96.14 | ||||
| F35 | 5304475607 | Hose Assembly,water Valve ,w/clamps |
|
$ 40.95 | |||||
| F36 | 5304482406 | Valve Assembly,water ,w/screws (Replaces: 5304475608) |
|
Immediately | $ 69.62 | ||||
| F40 | 5304475612 | Tube Assembly,condensation ,w/screws |
|
$ 57.02 | |||||
| F41 | 5304475613 | Fan Assembly,drying ,w/screws |
|
$ 164.43 |
