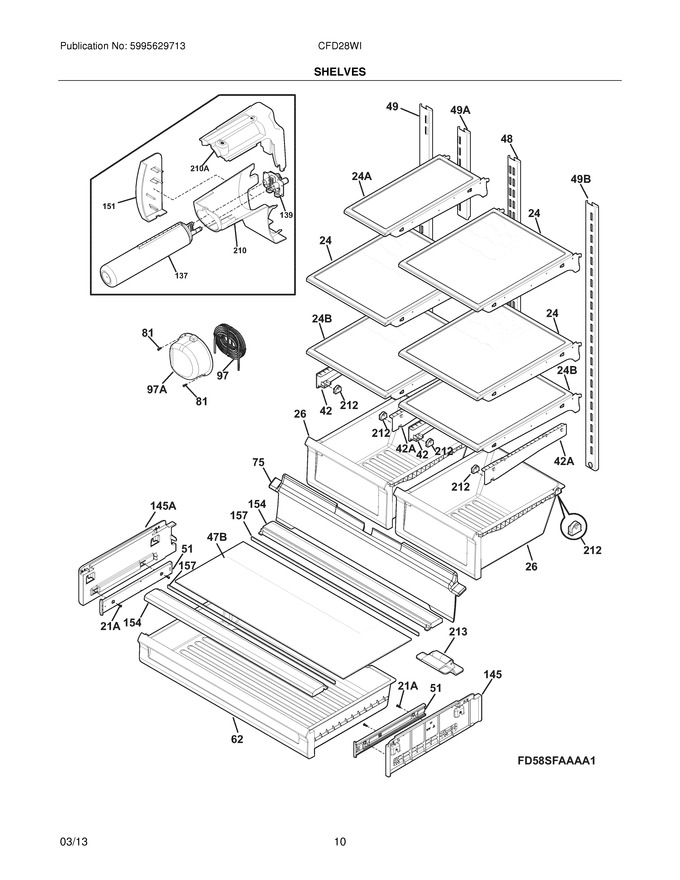

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 24 | 242068717 | Shelf-``spill-safe``,cantilever ,sliding (Replaces: 242068701) |
|
$ 182.01 | |||||
| 26 | 241801801 | Pan,crisper |
|
$ 184.51 | |||||
| 42 | 242067901 | Support,crspr Pan Rolle |
|
$ 22.68 | |||||
| 48 | 242122101 | Channel-shelf Mtg,center |
|
$ 80.09 | |||||
| 49 | 242122201 | Channel-shelf Mtg,side ,lh |
|
$ 45.89 | |||||
| 51 | 242065301 | Slide-deli |
|
$ 109.15 | |||||
| 62 | 242096801 | Pan-deli |
|
$ 265.91 | |||||
| 75 | 242072702 | Shield-light,refr |
|
$ 115.25 | |||||
| 81 | 240383407 | Screw,truss Hd Quad ,no.10-16 X .500 ,white |
|
$ 12.76 | |||||
| 97 | 242220501 | Water Tank,coil (Replaces: 242082002) |
|
Immediately | $ 99.23 | ||||
| 139 | 242009604 | Base-water Filter (Replaces: 242009601) |
|
Immediately | $ 33.14 | ||||
| 145 | 242082201 | Support,rail |
|
$ 73.24 | |||||
| 151 | 242069701 | Cover-water Filter |
|
$ 62.24 | |||||
| 154 | 242082401 | Support |
|
$ 76.22 | |||||
| 157 | 241872201 | Beam-crisper Cover |
|
$ 53.85 | |||||
| 210 | 241983816 | Housing-water Filtr |
|
Immediately | $ 73.71 | ||||
| 212 | 242236801 | Roller Assembly,crisper Pan |
|
Immediately | $ 21.99 | ||||
| 213 | 242010901 | Roller Assy,deli Pan |
|
$ 49.62 | |||||
| 21A | 241953902 | Screw,no.8 - 18 X .380 ,3 |
|
Immediately | $ 17.11 | ||||
| 24A | 242068702 | Shelf-``spill-safe``,cantilever ,1/4 Width,sliding |
|
$ 185.70 | |||||
| 24B | 242068703 | Shelf-``spill-safe``,fixed |
|
$ 221.45 | |||||
| 42A | 242067801 | Support,crspr Pan Rolle |
|
$ 52.47 | |||||
| 47B | 242082303 | Glass,deli Cover |
|
$ 108.45 | |||||
| 49A | 5304531311 | Channel-shelf Mtg,center ,icemaker Shelf (Replaces: 242122001) |
|
- | |||||
| 49B | 242122301 | Channel-shelf Mtg,side ,rh |
|
$ 77.97 | |||||
| 97A | 242117301 | Cover-water Tank |
|
$ 72.18 | |||||
| F137 | ULTRAWF | Filter-water,carbon (Replaces: 241791601) |
|
Immediately | $ 109.49 | ||||
| F145 | 242082202 | Support,rail |
|
$ 74.50 | |||||
| F154 | 242015001 | Screw,8-18 X 1/2 |
|
Immediately | $ 16.30 | ||||
| F210 | 241998303 | Mount-water Filter (Replaces: 241998302) |
|
$ 14.41 | |||||
| F210 | 5304453707 | Screw,plask ,no.8-18 X .500 (Replaces: 240363402) |
|
Immediately | $ 15.92 | ||||
| F97A | 242004802 | Foam-strip |
|
$ 5.67 | |||||
| NI | 5304453707 | Screw,no.8-18 (Replaces: 241953901) |
|
Immediately | $ 15.92 | ||||
| NI | 241695904 | Screw |
|
$ 14.41 | |||||
| NI | 242110228 | Energy Guide |
|
- | |||||
| NI | 241500303 | Screw,hex Washer Head ,8-18ab X 1/2 |
|
Immediately | $ 4.55 | ||||
| NI | 5304455650 | Screw,hex Washer Head ,8-15a X 0.625 ,low Profile |
|
$ 14.18 |
