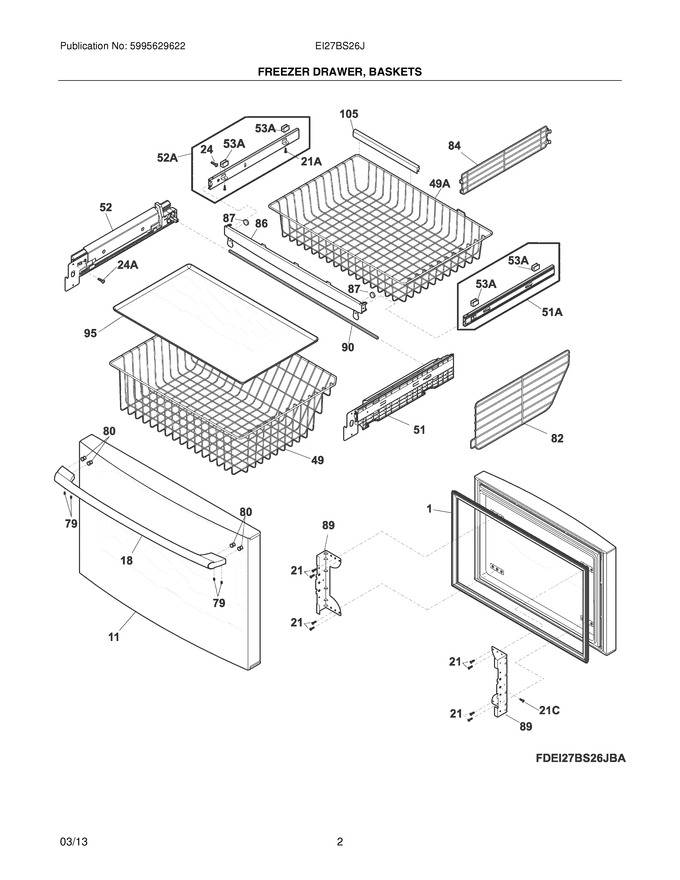

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 241987902 | Drawer,black ,freezer |
|
$ 261.77 | |||||
| 18 | 241881323 | Handle-frzr Drawer,black |
|
$ 206.20 | |||||
| 21 | 241690602 | Screw,quadrex ,no.10-16 Hilo |
|
Immediately | $ 10.63 | ||||
| 24 | 5304515677 | Screw,truss Hd Quad ,no.10-16 X .500 ,zinc (Replaces: 240383406) |
|
Immediately | $ 19.23 | ||||
| 49 | 242026802 | Basket-frzr,lower |
|
$ 216.41 | |||||
| 51 | 5303918692 | Slide Assembly,basket Lower ,rh ,freezer Drawer (Replaces: 242130510) |
|
$ 257.27 | |||||
| 52 | 5303918691 | Slide Assembly,basket Lower ,lh ,freezer Drawer (Replaces: 242130509) |
|
$ 258.70 | |||||
| 79 | 218755401 | Screw-set,10-32 X 0.375 |
|
Immediately | $ 25.02 | ||||
| 80 | 218755504 | Screw-shoulder,no.10 Ab ,handle Mounting |
|
Immediately | $ 18.60 | ||||
| 82 | 242027103 | Divider,basket ,lower |
|
- | |||||
| 84 | 241780904 | Divider,basket ,upper (Replaces: 241780901) |
|
$ 71.29 | |||||
| 86 | 242090701 | Bar-stabilizer,freezer Drawer |
|
$ 63.32 | |||||
| 87 | 241812202 | Magnet,freezer Drawer |
|
$ 72.30 | |||||
| 89 | 241972302 | Bracket-freezer Drawer |
|
$ 109.21 | |||||
| 90 | 242136903 | Bar-timing |
|
- | |||||
| 95 | 242090801 | Tray,spill Guard |
|
- | |||||
| 105 | 242116801 | Trim-basket |
|
$ 17.72 | |||||
| 21A | 241953902 | Screw,no.8 - 18 X .380 ,3 |
|
Immediately | $ 17.11 | ||||
| 21C | 241899703 | Screw,truss Head ,no.10-32 X 1/4 ,zinc |
|
$ 15.92 | |||||
| 24A | 240383412 | Screw,truss Hd Quad ,no.10-16 X .750 ,zinc |
|
$ 11.44 | |||||
| 49A | 241780809 | Basket-frzr,upper |
|
$ 146.95 | |||||
| 51A | 241894223 | Slide Assembly,basket ,rh ,freezer Drawer |
|
Immediately | $ 132.53 | ||||
| 52A | 241894224 | Slide Assembly,basket ,lh ,freezer Drawer |
|
$ 131.83 | |||||
| 53A | 5303918801 | Retainer-basket (Replaces: 242216301) |
|
$ 12.89 | |||||
| F1 | 5304537408 | Gasket-frzr Drawer,black ,magnetic (Replaces: 241778304) |
|
Immediately | $ 86.28 | ||||
| F51A | 242039701 | Screw |
|
$ 13.46 | |||||
| NI | 5304497384 | Plate,tapping (Replaces: 242147601) |
|
$ 15.60 | |||||
| NI | 242039702 | Screw,shoulder ,no.10-16 ,(2) |
|
$ 4.26 | |||||
| NI | 241701902 | Screwdriver,hex ,3/32`` ,ball Driver |
|
$ 19.85 | |||||
| NI | 241601002 | Wrench,allen |
|
- | |||||
| NI | 5304453707 | Screw,no.8-18 (Replaces: 241953901) |
|
Immediately | $ 15.92 | ||||
| NI | 242011101 | Pin-lock |
|
$ 15.17 | |||||
| NI | 242146401 | Screw,ser Hex Wash Hd ,1/4-20 X 5/8 ,(4) |
|
Immediately | $ 14.27 |
