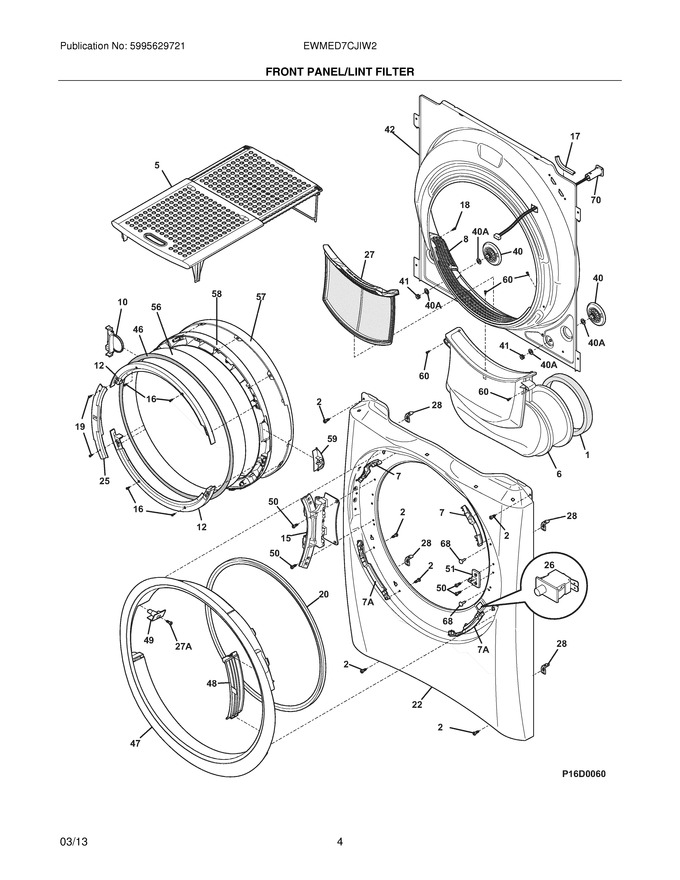

05 - Front Panel/lint Filter


07 - Controls/top Panel


09 - Motor


11 - Burner


12 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	134784700		Seal,air Duct				$ 17.72
2	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 14.18
5	137453000		Rack,drying .				$ 80.59
6	134708300		Duct,air				$ 213.36
7	137046800		Bracket,trim Ring Mtg ,upper				$ 18.79
8	134700900		Cover,lint Housing				$ 108.20
10	134933900		Assembly,indicator ,complete				$ 84.79
12	134696901		Frame,inner Door				$ 87.48
15	134704600		Hinge,dryer Door				$ 240.26
16	134788000		Screw,no.8 X1.18 ,pan Hd		Appelez-nous	-
17	134792900		Protector,edge ,right Top Front ,85.0+/-1.5				$ 13.46
18	131168200		Screw,10-16ab X 0.375   (Replaces: 131477000)			Immediately	$ 14.18
19	134790400		Screw,no.10x1.25 ,oval Head				$ 14.18
20	137553000		Gasket,front Panel   (Replaces: 137066300)				$ 131.64
22	134696310		Panel,front ,white				$ 198.50
25	137538801		Push-push,latch ,door		Appelez-nous	-
27	134793600		Filter, Lint ,complete			Immediately	$ 92.54
28	137034500		Clip,mounting ,cabinet Front				$ 43.24
40	5304523155		Roller,wheel ,complete Asmy   (Replaces: 134715900)			Immediately	$ 77.99
41	134716800		Nut,3/8-16				$ 2.98
42	134695905		Bulkhead,panel ,front				$ 186.74
46	134934900		Gasket,door Glass				$ 24.36
47	5304505715		Trim,front Panel   (Replaces: 134618800)				$ 302.18
48	134618900		Cover,trim Ring				$ 80.80
49	134651200		Retainer,trim Ring				$ 161.22
50	131303300		Screw,pan Head ,10-16ab X 0.500 ,locking		Appelez-nous	-
51	137459300		Striker,front Panel				$ 49.16
56	134701900		Glass,door		Appelez-nous	-
57	137067900		Lens,decorated Door   (Replaces: 134932900)				$ 206.24
58	134697200		Panel,outer Door		Appelez-nous	-
59	134931500		Cover,indicator Hole				$ 25.52
60	134430300		Screw,indt Pan Head ,10-14 X 0.625 ,quadrex			Immediately	$ 14.89
68	134742000		Plug,hinge Hole ,white				$ 10.85
70	137526010		Lamp-led,drum ,complete   (Replaces: 134695000)				$ 150.68
27A	134790600		Screw,no.10-24 X 1.0`` ,pan Hd		Appelez-nous	-
40A	134716700		Washer,flat				$ 2.12
7A	137046700		Bracket,trim Ring ,mounting				$ 24.10
F26	134813600		Switch,door			Immediately	$ 43.09
NI	134716200		Retainer,roller Wheel ,assembly				$ 3.12
NI	5308027429		Adhesive, High Temp			Immediately	$ 60.25
NI	137380600		Screw,flat Head ,m5 X .8 X 17.5   (Replaces: 134601900)				$ 9.41
NI	134793200		Wiring Harness,door Switch				$ 60.01
