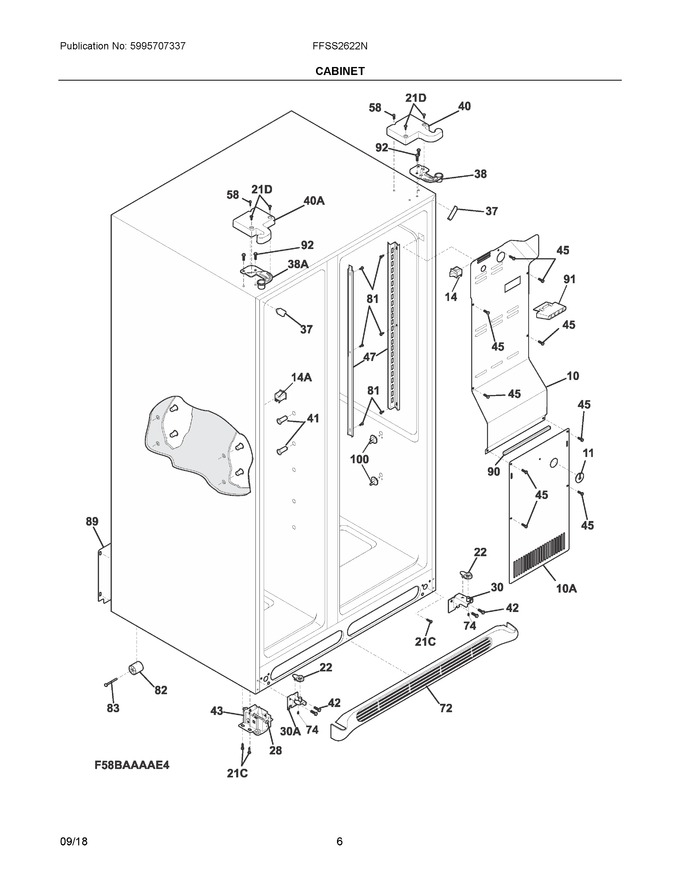

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	240435912		Cover-air Duct				$ 123.23
11	5303208309		Plug-hole, Factory Test				$ 45.50
14	240505801		Switch, Light/lamp				$ 66.63
22	241917801		Plate-door Closer				$ 7.09
28	5304499445		Bolt-roller Adj, Hex Washer Head, 1/4-20 X 4.020, (2), Special   (Replaces: 240335502)			Immediately	$ 31.33
30	241918001		Bracket-lower Hinge, Rh, W/hinge Pin   (Replaces: 241917901)				$ 65.92
37	242161201		Trim-cabinet Corner, White, (2)   (Replaces: 240337608)			Immediately	$ 2.93
38	241761301		Bracket-upper Hinge, Rh				$ 66.25
40	241946711		Cover-upper Hinge, White		Appelez-nous	-
41	241550801		Grommet-shelf Mtg, 1.40" Long				$ 63.70
42	240578902		Screw, Hex Head, 1/4-20 X 5/8			Immediately	$ 14.18
43	5304499445		Roller Assy, Front, (2)   (Replaces: 240335006)			Immediately	$ 31.33
45	241500303		Screw, Hex Washer Head, 8-18ab X 1/2			Immediately	$ 4.55
47	218659500		Channel-shelf Mtg, Side, (2)				$ 121.38
58	241548003		Screw, 10-32 X 3/8				$ 3.03
72	240324409		Grille/kickplate, White				$ 63.70
74	218755402		Screw-set, 10-32 X .500 In			Immediately	$ 33.00
81	5304455650		Screw, Hex Washer Head, 8-15a X 0.625, Low Profile				$ 14.18
82	5304418225		Roller, Compressor Base, Rear, (2)				$ 51.57
83	5304455655		Rivet, Flat Head, 1/4 Od X 1-3/4, Roller Pin			Immediately	$ 35.34
89	5304520905		Cover-access, W/label   (Replaces: 241733902)			Immediately	$ 74.03
90	218249808		Seal-coil Cover		Appelez-nous	-
91	240380101		Duct-ice Maker				$ 75.08
92	241710601		Screw, Hex Washer Hd, 1/4 X 7/8, Hinge Mtg				$ 13.46
100	241993101		Support-crisper Cvr			Immediately	$ 5.62
10A	241719711		Cover-evap Coil, Lower				$ 105.80
14A	241547902		Switch-light/lamp, Frzr Door   (Replaces: 241547901)			Immediately	$ 23.25
21C	218252201		Screw, #8 Truss Hd, 10-32ca X 0.500			Immediately	$ 14.18
21D	218781101		Screw, Pan Head, 8-18 X 0.625				$ 15.60
30A	241917902		Bracket-lower Hinge, Lh, W/hinge Pin		Appelez-nous	-
38A	241761302		Bracket-upper Hinge, Lh				$ 64.49
40A	241946712		Cover-upper Hinge, White		Appelez-nous	-
NI	241868101		Air Guide		Appelez-nous	-
NI	241890601		Louver, Air Supply, Crisper				$ 15.60
NI	240494001		Plug, Button, Cab Liner Holes   (Replaces: 240479601)			Immediately	$ 18.20
NIA	241550701		Grommet-shelf Mtg, .96" Long				$ 18.20
NIA	241993001		Support-crisper Cvr			Immediately	$ 19.23
