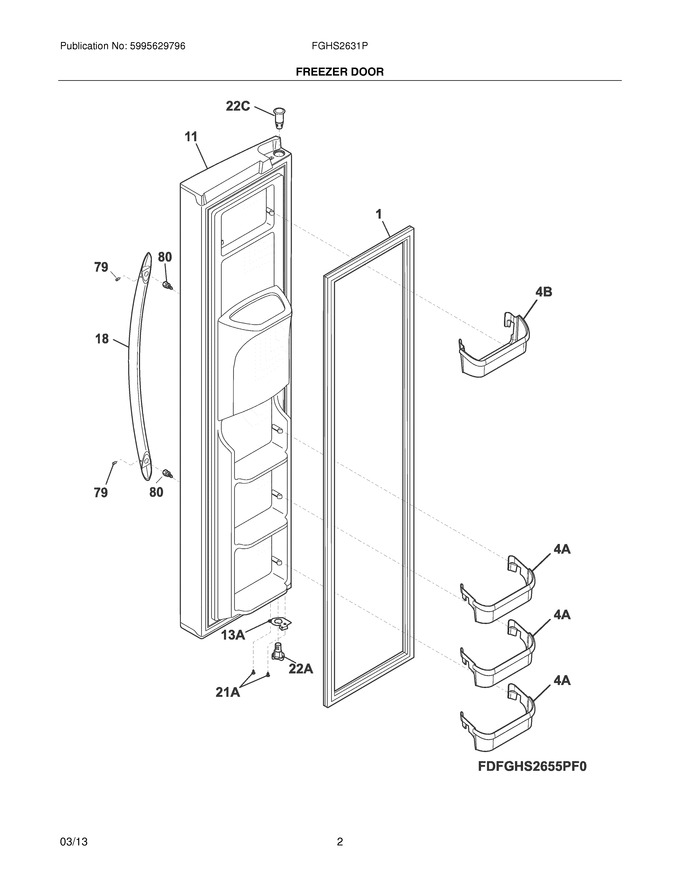

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 242178018 | Door-frzr,black ,complete Assy |
|
- | |||||
| 18 | 241930103 | Handle-door,black |
|
$ 213.98 | |||||
| 79 | 218755405 | Screw-set,10-32 X 0.375 (Replaces: 218755408) |
|
Immediately | $ 20.56 | ||||
| 80 | 218755504 | Screw-shoulder,no.10 Ab ,handle Mounting |
|
Immediately | $ 18.60 | ||||
| 13A | 241990202 | Door Stop,black ,frzr |
|
Immediately | $ 21.27 | ||||
| 21A | 240442708 | Screw-no.10-32 X 3/4,zinc (Replaces: 240442706) |
|
$ 8.34 | |||||
| 22A | 241990302 | Bearing-hinge(frz),closer |
|
$ 7.09 | |||||
| 22C | 241760402 | Bearing,hinge ,top |
|
$ 19.13 | |||||
| 4A | 240351601 | Bin-door |
|
Immediately | $ 58.73 | ||||
| 4B | 240334201 | Bin-door,frzr-upper |
|
$ 67.21 | |||||
| F1 | 241786014 | Freezer Door Gasket, Grey, Magnetic (Replaces: 241786006) |
|
$ 95.17 | |||||
| FNI | 242288101 | Harness,wiring ,door |
|
- | |||||
| FNI | 5303918596 | Dispenser Heater Kit,115 (Replaces: 5303918371) |
|
$ 317.38 | |||||
| NI | 241601002 | Wrench,allen |
|
- | |||||
| NI | 241806601 | Connector-water,straight ,5/16 To 5/16 (Replaces: 242103001) |
|
Immediately | $ 70.56 | ||||
| NI | 240451503 | Screw,ind Hex Wshr Hd ,8-32 X 0.375 ,trilobe |
|
$ 3.79 |
