Diagram # Part Number Description Series Availability Ships Price Add to Cart
5 5308000010 Fan Blade,red ,evaporator Fan In-Stock Immediately $ 49.03

8 215474201 Washer,``slinger`` ,nylon ,evap Fan Shaft In-Stock Immediately $ 18.43

9 241518301 Bushing,motor Mounting Special Order $ 66.63

14 242135301 Clip,evap Fan Motor ,evap Fan Motor Special Order $ 7.79

23 241845401 Housing-sensor Appelez-nous -
54 241532401 Channel Special Order $ 30.47

58 5304455650 Screw,hex Washer Head ,8-15a X 0.625 ,low Profile Special Order $ 14.18

60 242286101 Housing-diffuser & Air Filter Special Order $ 43.95

115 241853801 Damper Assy,w/seal Special Order $ 157.35

137 ULTRAWF Filter-water,carbon   (Replaces: 241791601) In-Stock Immediately $ 109.49

139 242009604 Base-water Filter   (Replaces: 242009601) In-Stock Immediately $ 33.14

149 242204504 Shroud-evap Fan Mtg   (Replaces: 241517601) Special Order $ 38.68

208 241754301 Sleeve,air Filter ,front Special Order $ 38.28

209 EAFCBF Filter-air   (Replaces: 242047801) In-Stock Immediately $ 27.64

210 241983813 Housing-water Filtr Special Order $ 34.73

211 242286201 Cover,water Filter Special Order $ 20.84

F13 809069220 Motor,evaporator Fan   (Replaces: 241509402) In-Stock Immediately $ 154.14

F149 241528304 Seal,foam ,evap Fan Assy Appelez-nous -
F210 5304453707 Screw,plask ,no.8-18 X .500   (Replaces: 240363402) In-Stock Immediately $ 15.92

F210 241998303 Mount-water Filter   (Replaces: 241998302) Special Order $ 14.41

F22 240597220 Sensor,(2)   (Replaces: 240597203) In-Stock Immediately $ 5.16

F50 5304497863 Board-main Power,board & Housing   (Replaces: 242115256) Special Order $ 286.67

F50A 242285301 Clip,retainer ,harness Appelez-nous -
F50A 241891610 Power Board,led Special Order $ 253.03

NI 241852502 Clip,retainer ,harness Appelez-nous -
NI 242036802 Clip,plastic Appelez-nous -
NI 242156301 Insulation-air Duct Appelez-nous -
NI 241500303 Screw,hex Washer Head ,8-18ab X 1/2 In-Stock Immediately $ 4.55


    View Diagram in Separate Window     Print Icon   Print Part List

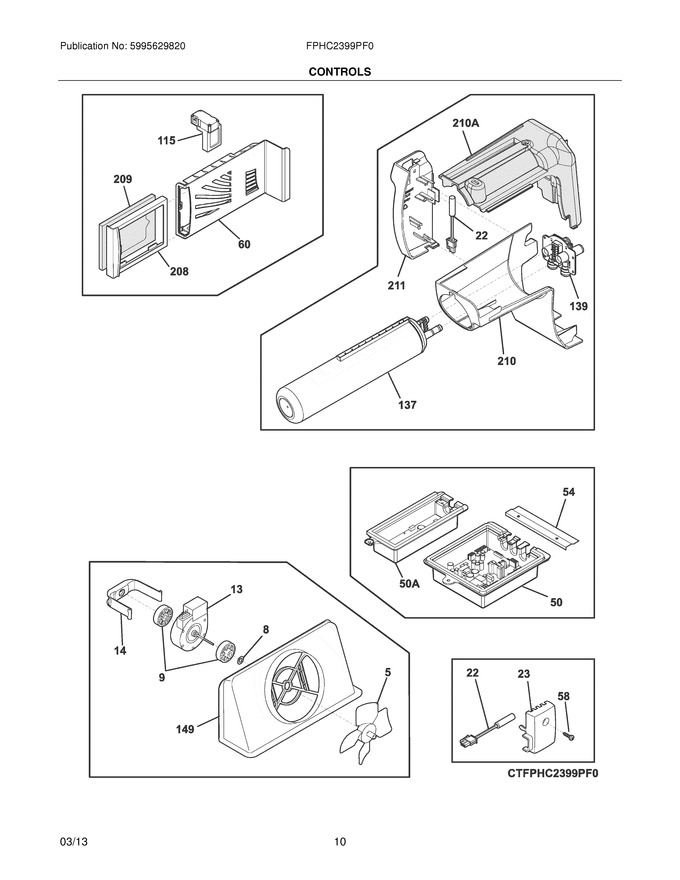

Diagram for FPHC2399PF0
