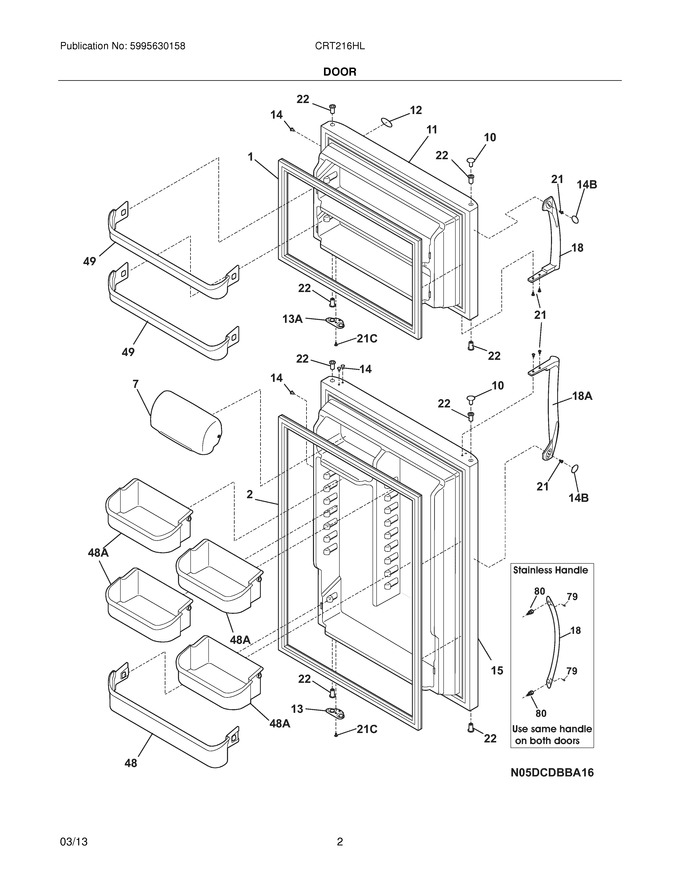

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	240338313		Door,dairy ,clear   (Replaces: 240338303)			Immediately	$ 80.80
10	240381307		Plug-button,silver Mist ,hinge Brg Hole   (Replaces: 240381306)			Immediately	$ 16.69
11	242178020		Door-frzr,stainless ,complete Assy		Appelez-nous	-
12	242115801		Nameplate		Appelez-nous	-
13	240312422		Door Stop,black ,refr   (Replaces: 240312405)				$ 15.17
14	240494006		Plug-button,silver Mist				$ 19.69
15	242178118		Door-refr,stainless ,complete		Appelez-nous	-
18	240413705		Handle-door,stainless Steel ,with Insert		Appelez-nous	-
22	5304507147		Bearing-hinge,black   (Replaces: 240527102)			Immediately	$ 7.59
48	240338101		Bin-door,pseudo ,bottom			Immediately	$ 52.37
49	240534801		Rack-door			Immediately	$ 49.62
79	218755402		Screw-set,10-32 X .500 In			Immediately	$ 33.00
80	218755504		Screw-shoulder,no.10 Ab ,handle Mounting			Immediately	$ 18.60
13A	240312415		Door Stop,black ,frzr				$ 21.27
21C	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500			Immediately	$ 14.18
48A	240338201		Bin-door,gallon ,white			Immediately	$ 69.35
F1	242193211		Gasket-frzr Door,black ,magnetic				$ 187.11
F2	242193214		Gasket-frzr Door,black ,magnetic				$ 190.85
NI	241601001		Wrench,allen		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
