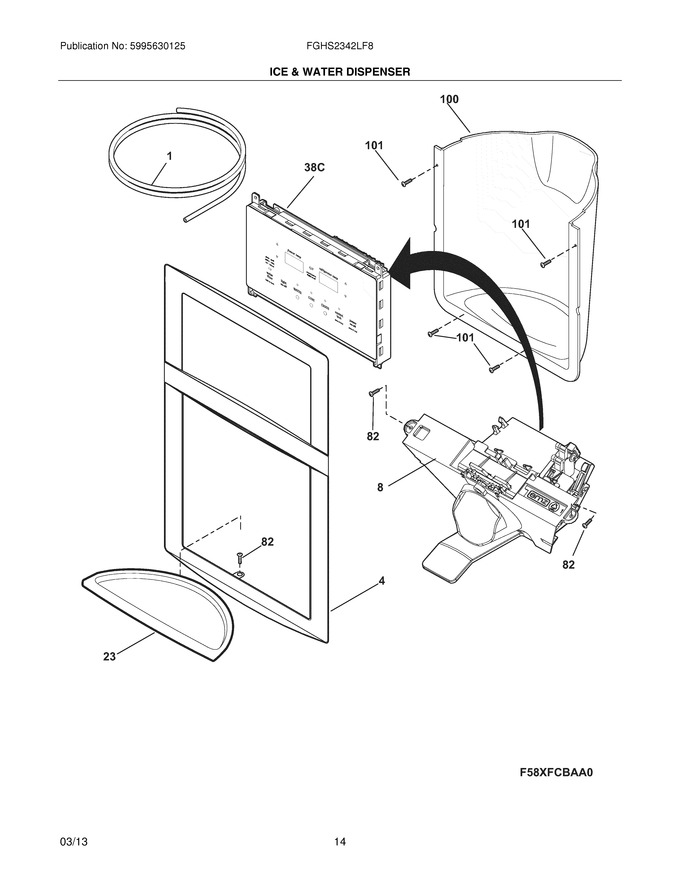

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976409 | Tube,water ,60`` ,natural ,door |
|
Immediately | $ 60.25 | ||||
| 4 | 242089602 | Cover-module,gray (Replaces: 242089603) |
|
$ 80.39 | |||||
| 8 | 242074223 | Module-dispenser (Replaces: 242074211) |
|
$ 255.15 | |||||
| 23 | 242092405 | Drip Tray,gray |
|
$ 44.71 | |||||
| 82 | 240363403 | Screw,8-18 X 0.500 ,2 |
|
- | |||||
| 100 | 241753305 | Liner-sump,gray |
|
- | |||||
| 101 | 5304453707 | Screw,plask ,no.8-18 X .500 (Replaces: 240363402) |
|
Immediately | $ 15.92 | ||||
| F38C | 242114904 | Board-control |
|
Immediately | $ 298.80 | ||||
| FNI | 5303918596 | Dispenser Heater Kit,115 (Replaces: 5303918371) |
|
$ 317.38 | |||||
| NI | 5303918484 | Chute-ice (Replaces: 242105401) |
|
$ 30.47 | |||||
| NI | 240561701 | Seal-water Inlet,inlet Valve ,to Ice Maker |
|
Immediately | $ 20.56 | ||||
| NI | 241850615 | Tube-water Inlet,inlet Valve ,to I/m Inlet (Replaces: 218976915) |
|
$ 34.73 | |||||
| NI | 218976429 | Tube-water Inlet,5/16 - 97.50`` ,brown/tan |
|
$ 40.40 | |||||
| NI | 218976419 | Tube-water Inlet,5/16 - 34`` ,yellow ,valve To Door |
|
$ 22.68 |
