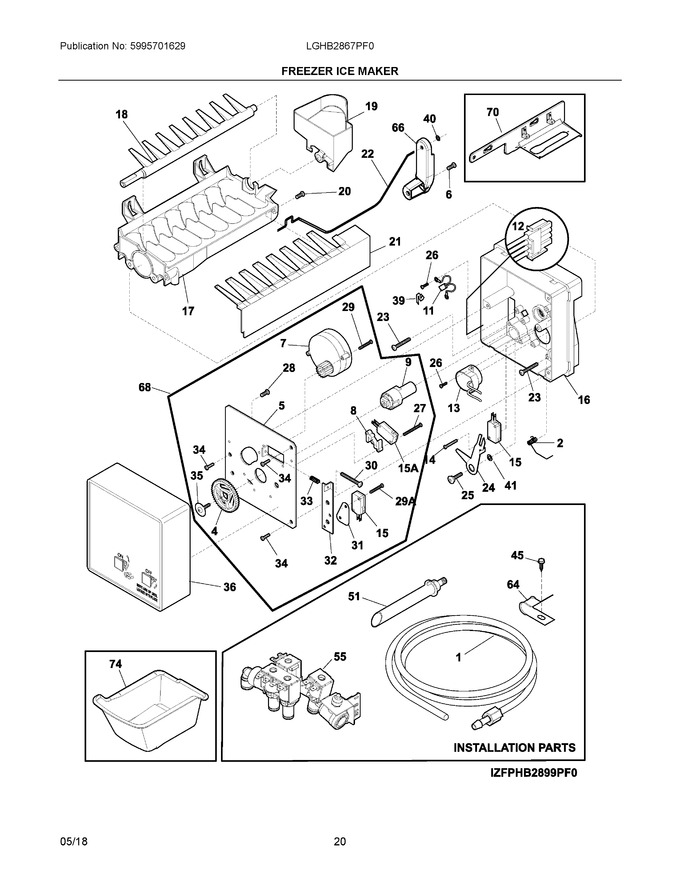

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218976436		Tube-water, 5/16 - 42", Yellow, Sd   (Replaces: 218976434)			Immediately	$ 8.51
2	5304469396		Spring-shutoff Arm, Ice Maker				$ 15.49
4	5304469403		Gear				$ 19.99
5	5304469399		Mounting Plate		Appelez-nous	-
6	3206305		Screw-ground Wire, 8-32 X 0.250		Appelez-nous	-
7	5304469407		Motor-ice Maker				$ 158.38
8	5304469404		Spacer-hold Switch		Appelez-nous	-
9	5304469402		Cam				$ 23.99
11	5304455695		Thermal Cutoff, Ice Maker, Complete Assy		Appelez-nous	-
12	5304469390		Harness-wiring				$ 97.39
13	5304469387		Thermostat Assy, Ice Maker				$ 111.48
14	5304469394		Screw, #5-24 X 3/4		Appelez-nous	-
15	5304469388		Switch-micro, 2		Appelez-nous	-
16	5304469379		Housing, Control				$ 89.62
17	5304469413		Mold-ice Maker, With Heater				$ 219.93
18	5304469384		Ejector-ice				$ 58.83
19	242051201		Cup-water Inlet, W/bearing				$ 13.28
20	5304469391		Screw, 8-32 X 3/8		Appelez-nous	-
21	5304469378		Ice Stripper				$ 18.11
22	242051301		Shut-off Arm				$ 21.16
23	5304469392		Screw, Mold-to-support, (2)		Appelez-nous	-
24	5304469382		Lever Arm				$ 22.89
25	5304469397		Screw, Lever Arm/sprt		Appelez-nous	-
26	5304469393		Screw		Appelez-nous	-
27	5304469410		Screw, Hold Switch Mtg, (2)		Appelez-nous	-
28	5304469414		Screw, #8-32 X 1/4		Appelez-nous	-
29	5304469409		Screw		Appelez-nous	-
30	5304469408		Screw-timing Adj, 8-32 X 1.000		Appelez-nous	-
31	5304469389		Spacer-switch		Appelez-nous	-
32	5304469400		Plate-valve Switch		Appelez-nous	-
33	5304469401		Spring, Timing Adjust				$ 11.29
34	5304469380		Screw, #8-10*1/2		Appelez-nous	-
35	5304469411		Screw		Appelez-nous	-
36	5304469385		Cover-ice Maker				$ 43.73
39	5304469383		Clamp		Appelez-nous	-
40	5304458401		Clip-retainer		Appelez-nous	-
41	5304469381		Washer, Flat		Appelez-nous	-
45	5304453923		Screw, Hex Hd Wshr, #8-32 X 1/2		Appelez-nous	-
51	242169404		Tube-water, Ice Mold Fill, 1/4 - 44", Blue, W/extension		Appelez-nous	-
55	242253002		Valve-water, Quad Solenoid			Immediately	$ 244.75
64	5304453921		Clamp-cable		Appelez-nous	-
66	242060701		Bracket-ice Maker, Shut Off Arm				$ 12.77
68	5304469398		Mounting Plate, Assy				$ 189.79
70	242041701		Bracket-ice Maker				$ 70.88
74	242127901		Container-ice				$ 197.17
15A	5304469405		Switch-micro				$ 40.95
29A	5304469412		Screw, #4-24 X 3/4				$ 6.84
NI	241503901		Connector-water, Straight, 5/16 To 1/4				$ 51.22
NI	241806601		Connector-water, Straight, 5/16 To 5/16   (Replaces: 242103001)			Immediately	$ 70.56
NI	5303918493		Ice Maker, Radius Cube, 115 V, Service   (Replaces: 241798219)			Immediately	$ 231.95
NI	240396801		Clamp, Tube/wiring, Nylon, Black/natural				$ 19.13
NIA	218709101		Screw, Hex Head, 10-32 X 0.500				$ 6.38
NIA	5304515677		Screw, Truss Hd Quad, #10-16 X .500, Zinc   (Replaces: 240383406)			Immediately	$ 19.23
NIA	5304469406		Insulator		Appelez-nous	-
NIA	5303918571		Tube-water, Ice Mold Fill, Black, Extension   (Replaces: 241844403)				$ 164.24
NIB	241920106		Tube-water, Assembly, 5/16 - 54", Green, Ice Maker Fill, W/extension   (Replaces: 241920104)			Immediately	$ 60.67
NIB	240555002		Screw, Hex Washer Head, 8-32t X 0.375   (Replaces: 241690701)			Immediately	$ 13.46
NIB	240363602		Screw-shoulder				$ 13.65
NIC	241964707		Tube-water, 1/4 - 36", Green			Immediately	$ 18.43
NIC	242039701		Screw, Basket Slides				$ 13.46
NID	241965906		Tube-water, 5/16 - 67", Natural			Immediately	$ 24.10
NIE	242220204		Tube-water, 5/16 - 93.5", Brown   (Replaces: 242082105)			Immediately	$ 40.32
NIF	242220204		Tube-water, 5/16 - 69.5", Natural   (Replaces: 242082106)			Immediately	$ 40.32
