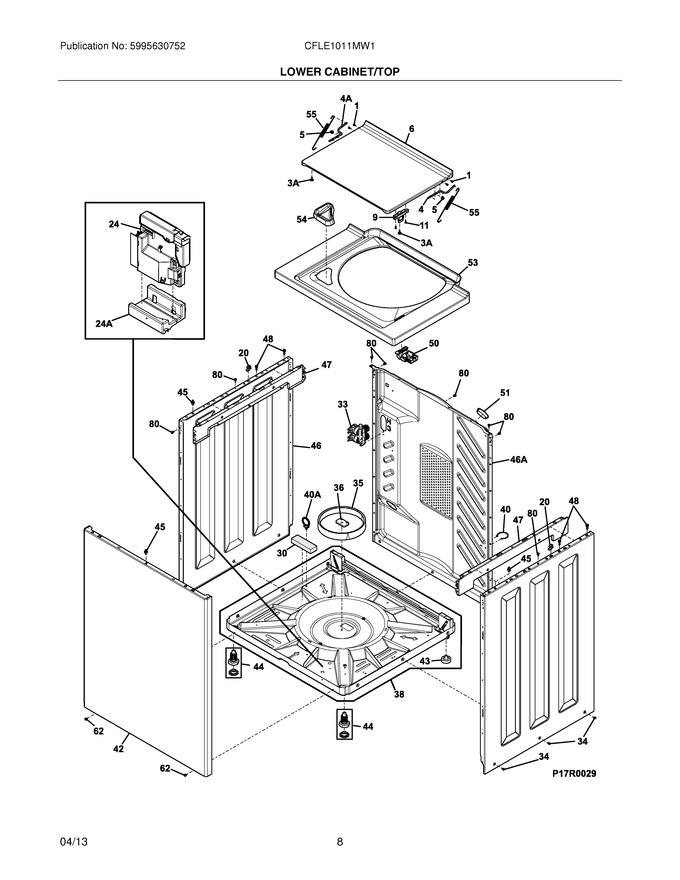

09 - Lower Cabinet/top
11 - Motor/tub
12 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 134203900 | Screw,pan Hd Phillips ,6-32 X 0.337 ,dog Point |
|
$ 10.85 | |||||
| 4 | 137469900 | Hinge Bar,rh, Lc |
|
$ 43.24 | |||||
| 5 | 5304488483 | Grommet,hinge ,acetal |
|
- | |||||
| 6 | 5303212872 | Lid,washer ,white |
|
Immediately | $ 345.16 | ||||
| 9 | 137513712 | Striker,lid ,white (Replaces: 137513710) |
|
Immediately | $ 13.01 | ||||
| 11 | 3204368 | Screw,lid Strike Mtg ,6-20b X 0.375 |
|
$ 13.01 | |||||
| 20 | 3204374 | Pin,slide ,side To Top |
|
$ 78.67 | |||||
| 30 | 131663500 | Cushion,drain Hose ,base |
|
$ 23.00 | |||||
| 34 | 131205500 | Screw,cab Body ,1/4-14 X 0.625 ,side-to-base |
|
$ 13.46 | |||||
| 35 | 5308002385 | Snubber Ring |
|
$ 54.86 | |||||
| 36 | 3204380 | Shipping Block |
|
$ 12.29 | |||||
| 38 | 137364600 | Base Assembly,self-leveling |
|
$ 229.53 | |||||
| 40 | 5303309503 | Clip,drain Hose ,back Sheet |
|
$ 7.09 | |||||
| 42 | 137455410 | Panel,front, Lc |
|
- | |||||
| 43 | 131422200 | Pad,self Lvlg Leg ,rear |
|
Immediately | $ 56.70 | ||||
| 44 | 134548800 | Leg,leveling W/pad (Replaces: 5303309673) |
|
Immediately | $ 30.20 | ||||
| 45 | 131346401 | Pin,panel Locator ,front |
|
Immediately | $ 16.63 | ||||
| 46 | 137272610 | Panel,washer Side ,white ,lh/rh |
|
$ 213.10 | |||||
| 47 | 137304500 | Bracket, Marriage,lh/rh Washer |
|
- | |||||
| 48 | 137329800 | Screw 12-24 Unc X .75 Hex,washer |
|
- | |||||
| 50 | 137353300 | Lock,lid ,external Switch |
|
Immediately | $ 110.66 | ||||
| 51 | 131453000 | Bushing,snap-in |
|
$ 10.63 | |||||
| 53 | 137190810 | Panel,washer Top Lc ,white |
|
$ 245.32 | |||||
| 54 | 5304488476 | Dispenser,bleach, Lc |
|
$ 35.44 | |||||
| 55 | 134890500 | Spring,lid Assist |
|
$ 19.85 | |||||
| 62 | 131302800 | Screw,10-16ab X 0.500 (Replaces: 131258400) |
|
Immediately | $ 26.58 | ||||
| 80 | 131168200 | Screw,pan Head ,8-18b X 0.31 |
|
Immediately | $ 14.18 | ||||
| 24A | 137469200 | Base,motor Control |
|
$ 65.10 | |||||
| 3A | 134075500 | Bumper,lid ,front |
|
$ 17.35 | |||||
| 40A | 134261300 | Clip,drain Hose ,push-mount |
|
$ 12.05 | |||||
| 46A | 137273201 | Panel,washer Back ,washed |
|
- | |||||
| 4A | 137470900 | Hinge Bar,lh, Lc |
|
$ 43.24 | |||||
| F24 | 137469113NH | Control,motor ,main Pc Board (Replaces: 137469113) |
|
Immediately | $ 273.27 | ||||
| F33 | 137353500 | Valve-2 Coil,120v, Water |
|
Immediately | $ 108.20 | ||||
| NI | 134178901 | Screw,8-18ab X 0.455 |
|
$ 14.89 |
