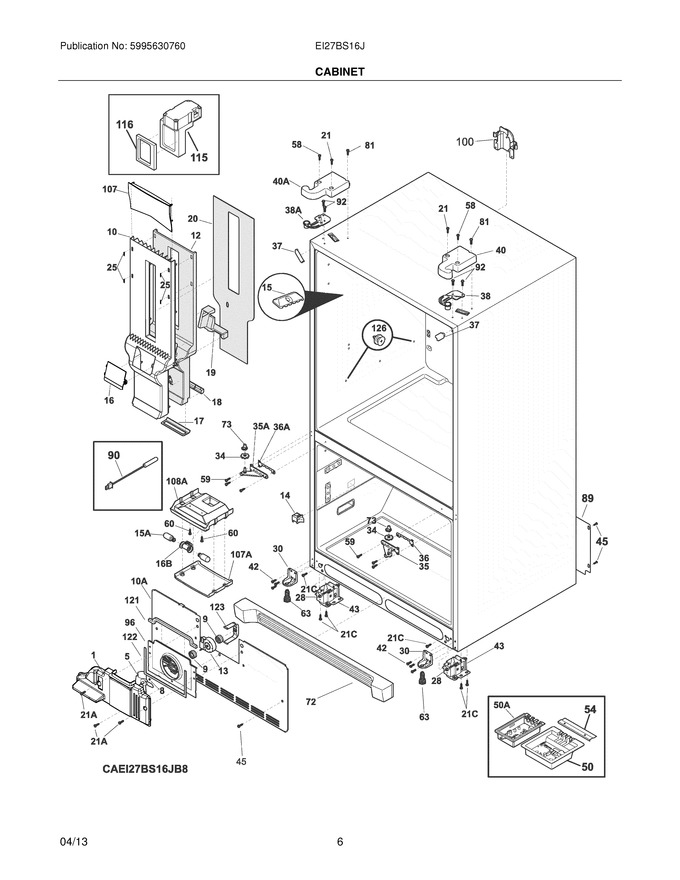

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	242099401		Cover-fan				$ 29.11
8	215474201		Washer,``slinger`` ,nylon ,evap Fan Shaft			Immediately	$ 18.43
9	241518301		Bushing,motor Mounting				$ 66.63
10	242058504		Cover-air Duct				$ 170.73
12	242073901		Foam-air Supply				$ 66.31
16	241860502		Cover-damper				$ 17.48
17	241928201		Gasket-air Duct				$ 17.72
18	241928101		Duct-air				$ 8.23
19	241871901		Support-eps Damper				$ 18.43
20	241922902		Cover-air Duct,rear				$ 0.07
21	241732101		Screw,10-32 X 1/2			Immediately	$ 15.60
25	241949502		Clip,air Vent				$ 20.48
28	5304499445		Bolt-roller Adj,hex Washer Head ,1/4-20 X 4.020,(2) ,special   (Replaces: 240335502)			Immediately	$ 31.33
30	241778701		Bracket-anti Tip				$ 26.54
34	241868301		Washer,hinge ,nylon ,(2)				$ 31.19
35	241763005		Hinge-lower,zinc ,rh		Appelez-nous	-
36	241868201		Spacer,door ,lower Rh				$ 49.62
37	240337610		Trim-cabinet Corner,black ,(2)				$ 5.63
38	241761301		Bracket-upper Hinge,rh				$ 66.25
40	242099801		Cover-upper Hinge,black		Appelez-nous	-
42	240578902		Screw,hex Head ,1/4-20 X 5/8			Immediately	$ 14.18
43	5304499445		Roller Assy,front ,(2)   (Replaces: 240335006)			Immediately	$ 31.33
45	218362501		Screw,hex Washer Head ,8-18ab X 1.250 ,spacer,(2)				$ 12.05
50	241996320		Board-main Power		Appelez-nous	-
54	241532401		Channel				$ 30.47
58	241500305		Screw   (Replaces: 241853202)				$ 3.03
59	240442708		Screw-no.10-32 X 3/4,zinc   (Replaces: 240442706)				$ 8.34
60	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile				$ 14.18
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
72	242054804		Grille/kickplate,black   (Replaces: 242054802)				$ 83.64
73	242075701		Cam-lower Hinge				$ 22.75
89	5304520905		Cover-access,w/label   (Replaces: 241733905)			Immediately	$ 74.03
90	240597220		Sensor,(2)   (Replaces: 240597203)			Immediately	$ 5.16
92	241710601		Screw,hex Washer Hd ,1/4 X 7/8 ,hinge Mtg				$ 13.46
96	241860601		Shroud-evap Fan Mtg			Immediately	$ 131.83
100	242157601		Cover,tubing ,eps Block				$ 11.92
107	241963101		Duct-air,top				$ 41.16
115	5303918899		Damper,motorized   (Replaces: 241518501)			Immediately	$ 73.24
116	241518601		Seal-damper,foam				$ 9.22
121	241860103		Gasket-evap,upper			Immediately	$ 3.73
122	241860117		Gasket-evap,bottom   (Replaces: 241860102)			Immediately	$ 11.21
123	242135301		Clip,evap Fan Motor ,evap Fan Motor				$ 7.79
126	242081301		Screw-shoulder		Appelez-nous	-
10A	242084102		Cover-evap Coil,lower .				$ 55.49
21A	242015001		Screw,8-18 X 1/2			Immediately	$ 16.30
21C	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500			Immediately	$ 14.18
35A	241763006		Hinge-lower,zinc ,lh		Appelez-nous	-
36A	241868202		Spacer,door ,lower Lh				$ 23.51
38A	241761302		Bracket-upper Hinge,lh				$ 64.49
40A	242099804		Cover-upper Hinge,black ,lh		Appelez-nous	-
F107	241971601		Shield-light,frzr				$ 35.65
F108	241971801		Cover-wiring,freezer Light				$ 87.32
F10A	241860109		Gasket-coil Cover		Appelez-nous	-
F10A	241860110		Gasket-coil Cover				$ 17.52
F13	809069220		Motor,evaporator Fan   (Replaces: 241509402)			Immediately	$ 154.14
F14	240505801		Switch-light/lamp				$ 66.63
F15	241891104		Light-led		Appelez-nous	-
F15A	5304517886		Light Bulb   (Replaces: 241552807)			Immediately	$ 73.06
F16B	241622802		Socket-light,frz Light				$ 65.93
F16B	241510802		Harness-wiring,frz Light				$ 41.81
F5	5308000010		Fan Blade,red ,evaporator Fan			Immediately	$ 49.03
F50A	241852501		Clip,wiring Harness				$ 15.60
F50A	241891607		Board-led Power				$ 268.55
FNI	242045503		Harness-wiring				$ 40.40
FNI	242104901		Harness-wiring				$ 127.40
NI	241859801		Cover-eps,damper				$ 8.93
NI	241953902		Screw,no.8 - 18 X .380 ,3			Immediately	$ 17.11
NI	241842301		Cap-thermistor			Immediately	$ 34.02
NI	218515401		Clip-grille				$ 17.72
NI	242118001		Shield,wiring Cover ,freezer		Appelez-nous	-
NI	242004802		Foam-strip				$ 5.67
NI	241810104		Seal,housing				$ 12.13
NI	241860112		Gasket-evap,upper				$ 7.09
NI	241860111		Gasket-evap,bottom				$ 12.05
NI	240494001		Plug,button ,cab Liner Holes   (Replaces: 240479601)			Immediately	$ 18.20
NI	5303321321		Paint,touch-up,black			Immediately	$ 21.97
NI	241695904		Screw				$ 14.41
NI	241969001		Cap,screw				$ 16.69
NI	5304453707		Screw,no.8-18   (Replaces: 241953901)			Immediately	$ 15.92
NI	241953904		Screw,no.8-18				$ 10.63
