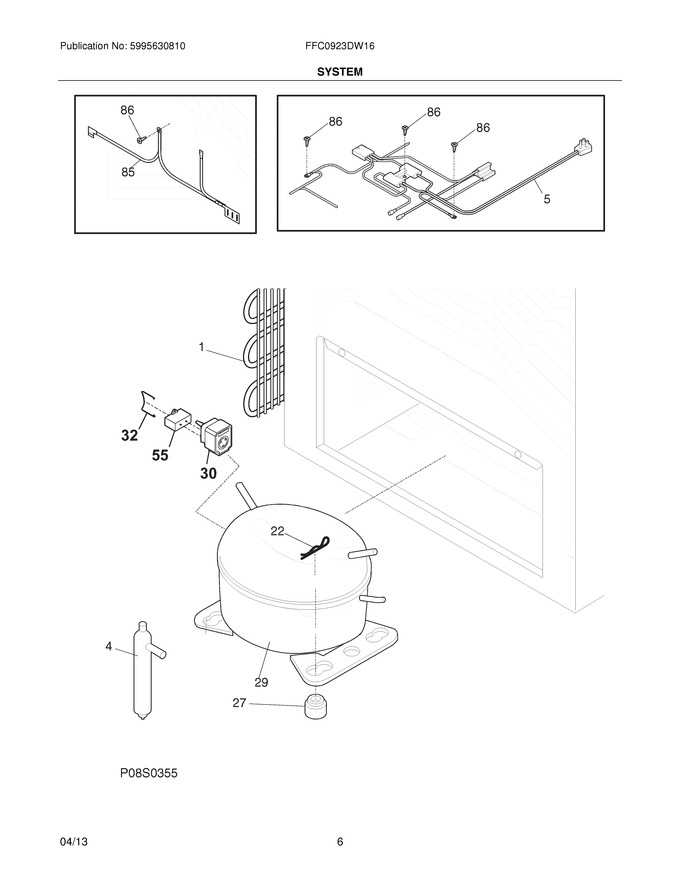

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	5303305677		Filter-dryer   (Replaces: 216987501)			Immediately	$ 31.67
22	242037701		Clip-compressor Mtg   (Replaces: 216056401)				$ 2.84
27	216498900		Grommet,compressor   (Replaces: 297293302)				$ 13.01
30	297259501		Controller,compressor				$ 74.08
32	216954300		Clip,controller				$ 17.01
85	216818300		Wire-ground		Appelez-nous	-
86	216707801		Screw,ph ,8-32 X 1/2 ,wiring Harness		Appelez-nous	-
F1	5300120781		Condenser		Appelez-nous	-
F29	5304507767		Compressor   (Replaces: 297406901)				$ 726.41
F5	297346001		Harness,main				$ 70.98
F55	297286805		Capacitor-run				$ 45.55

    View Diagram in Separate Window       Print Part List
