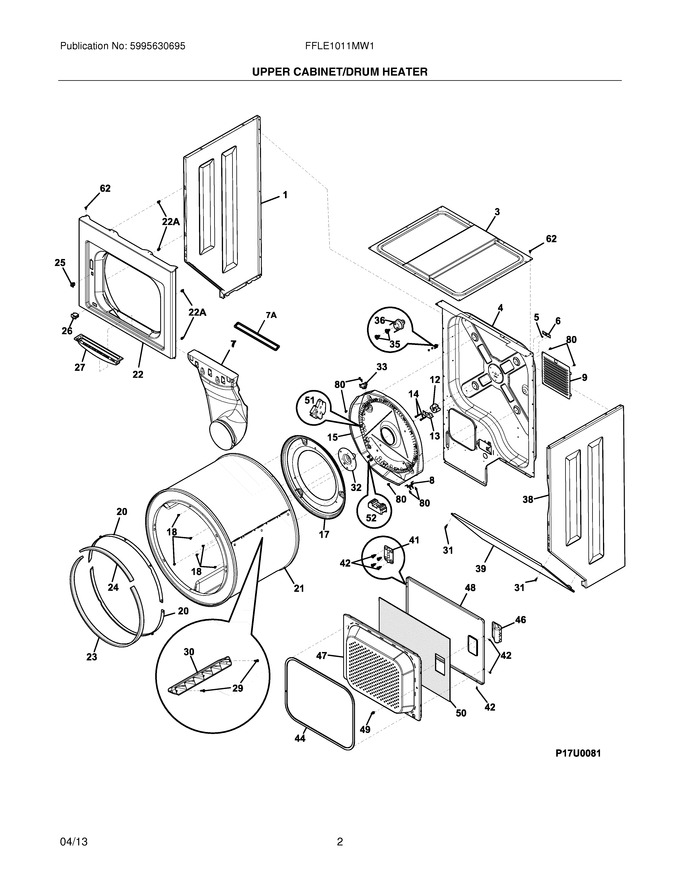

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	137510410		Panel,left Side ,white				$ 231.62
3	131883301		Panel,top				$ 276.98
4	137491301		Panel,rear, Dryer ,stainless				$ 233.57
5	5303281019		Ball,grounding				$ 16.30
6	5303281020		Clip,ball ,steel ,flat Nut				$ 17.01
7	5304521121		Duct,air   (Replaces: 134086300)				$ 118.56
8	137032600		Limiter,thermal ,heater			Immediately	$ 22.00
9	5304488480		Panel,motor Access ,washed		Appelez-nous	-
12	131825900		Bearing-drum Support			Immediately	$ 10.97
13	131724301		Bracket,bearing Support   (Replaces: 131724300)			Immediately	$ 25.66
14	131205400		Screw,bracket Mtg. ,10-16b X 1.375 ,cr/sq Drive				$ 12.76
17	3204254		Baffle,heater Shield				$ 129.00
18	131168200		Screw,10-16ab X 0.375   (Replaces: 131477000)			Immediately	$ 14.18
20	137513300		Glide,flat, Dryer			Immediately	$ 36.68
21	134122509		Drum, Dryer Svc Kit,galv. Steel				$ 404.20
22	137552110		Panel,front Weld ,white				$ 320.69
23	5303937183		Seal,felt ,lower   (Replaces: 134134700)			Immediately	$ 35.87
24	5303937182		Seal,felt ,upper   (Replaces: 134036400)			Immediately	$ 26.89
25	131658800		Door Catch,upper			Immediately	$ 68.38
27	5304516871		Lint Trap   (Replaces: 131359600)			Immediately	$ 35.83
29	131382300		Screw,quadrex Head ,10-14 X 1.00 ,vane Mtg.,special			Immediately	$ 13.46
30	137552900		Vane,straight, Low				$ 54.95
31	131202300		Screw,10-16ab X 0.625			Immediately	$ 13.46
32	131777700		Shaft,drum Support ,ballhitch   (Replaces: 137088600)			Immediately	$ 71.87
35	131892100		Screw,6-20b X 0.230		Appelez-nous	-
38	137510510		Panel,right Side ,white				$ 233.08
39	137546910		Panel,access				$ 184.19
41	134222900		Hinge,dryer Door				$ 22.68
42	134156200		Screw,flat Head ,8-18ab X 0.44 ,quad Drive			Immediately	$ 14.89
44	137551901		Gasket,door   (Replaces: 137551900)			Immediately	$ 41.00
46	131789400		Handle-door, White			Immediately	$ 63.79
47	137365110		Panel,inner Door ,white				$ 229.64
48	137408403		Panel,outer Door ,white			Immediately	$ 194.20
49	5303207102		Door Strike   (Replaces: 5303211430)			Immediately	$ 19.85
50	134535300		Insulator,heat Shield ,outer Door				$ 60.25
51	131472100		Insulator,heater Housing				$ 60.01
62	131302800		Screw,10-16ab X 0.500   (Replaces: 131258400)			Immediately	$ 26.58
80	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 14.18
22A	137362600		Pin,panel Locator				$ 35.44
7A	131295200		Seal-air Duct				$ 16.30
F15	137392700		Heater Asmy W/hsg,w/thermistor   (Replaces: 137565600)			Immediately	$ 205.84
F26	134813600		Switch,door			Immediately	$ 43.09
F33	3204267		Thermostat-safety			Immediately	$ 53.49
F36	134120900		Thermal Limiter			Immediately	$ 13.21
F38A	137604900		Seal,exhaust Tube		Appelez-nous	-
F52	3202786		Terminal Block,heater Housing				$ 64.49
FNI	137328900		Wiring Harness,door Switch ,w/o Light			Immediately	$ 46.27
NI	137576600		Plug-light Hole   (Replaces: 131870700)			Immediately	$ 14.18

    View Diagram in Separate Window       Print Part List
