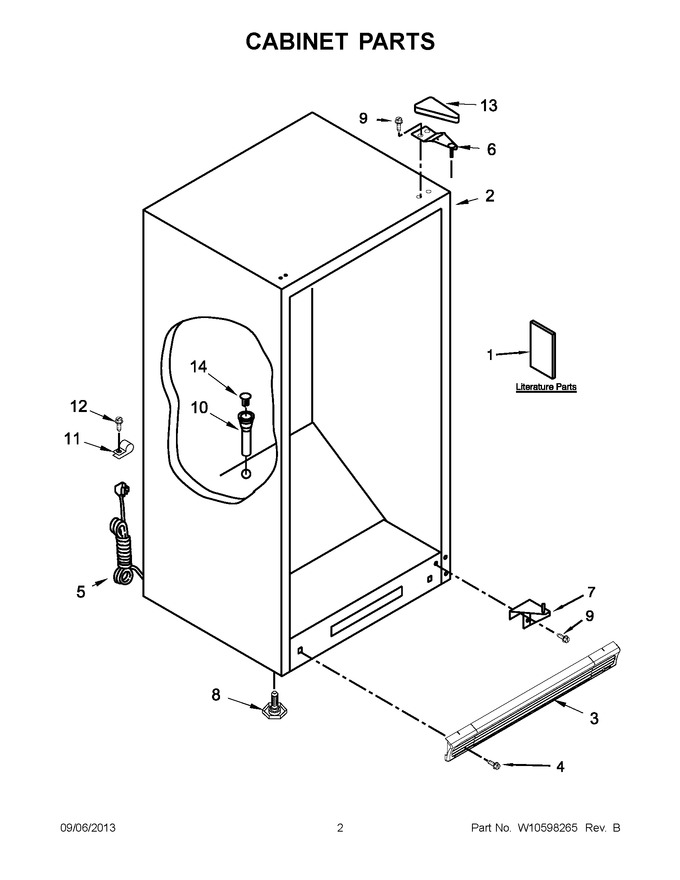

02 - Cabinet Parts


03 - Liner Parts


04 - Door Parts


05 - Unit Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10571654		Energy Guide/tag		Appelez-nous	-
1	W10326799		Owners Manual		Appelez-nous	-
2	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
3	60461-006		Trim, Toe Kick (white)		Appelez-nous	-
4	24004-107		Screw		Appelez-nous	-
5	4-82399-001		Cord, Power				$ 52.24
6	2-81016-105		Hinge, Top Fc (white)				$ 37.06
7	8210238		Hinge, Bottom (white)   (Replaces: 4-82693-001)				$ 38.28
8	WP3-82710-001		Leg, Leveler (black)   (Replaces: 3-82710-001)			Immediately	$ 18.29
9	WP8204624		Screw   (Replaces: 1-80271-103)				$ 14.99
10	2-81437-002		Grommet, Drain		Appelez-nous	-
11	1-80231-101		Clamp, Tube		Appelez-nous	-
12	681390		Screw   (Replaces: 1-80257-102)				$ 11.75
13	3-80838-003		Cover, Hinge (white)				$ 4.50
14	WR2M4101		Drain Plug   (Replaces: 1-80860)		Appelez-nous	-
