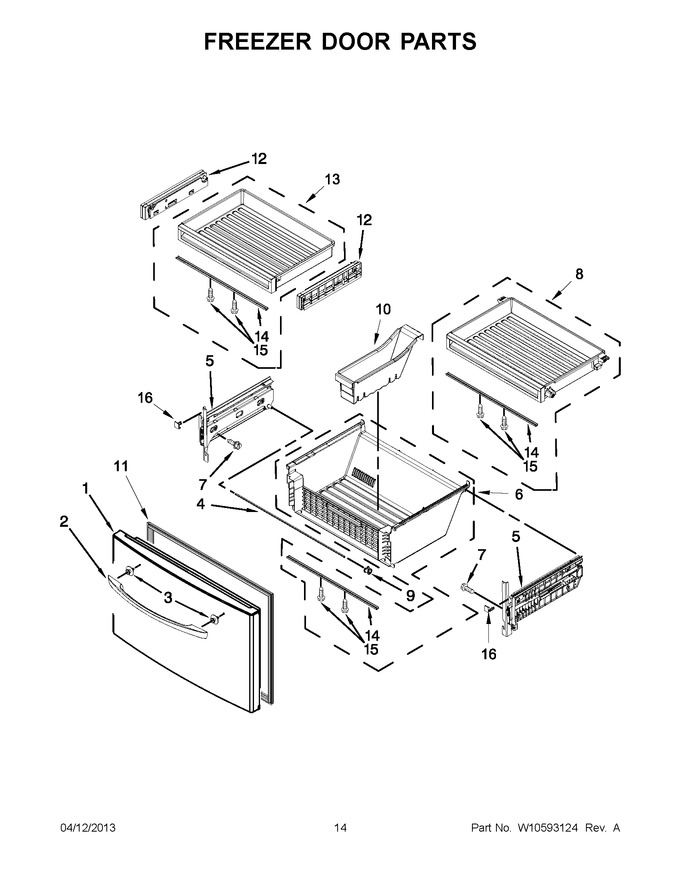

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LW10564038		Freezer Door (stainless)   (Replaces: W10564038)				$ 1,315.73
2	WPW10314522K		Handle, Door (stainless)   (Replaces: W10314522KN)				$ 280.70
3	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 12.88
4	WPW10503522		Shaft   (Replaces: W10503522)				$ 98.10
5	W11668672		Assembly, Bracket (right Hand)   (Replaces: W10564644)			Immediately	$ 532.22
5	W11668672		Assembly, Bracket (left Hand)   (Replaces: W10564639)			Immediately	$ 532.22
6	W10594052		Bin, Lower   (Replaces: W10564676)			Immediately	$ 271.25
7	WP67006908		Screw   (Replaces: 12990518)			Immediately	$ 8.78
8	W10564681		Assembly, Center Pan		Appelez-nous	-
9	W10852685		Clip, Shaft   (Replaces: W10248509)				$ 11.39
10	W10562492		Divider, Lower				$ 108.21
11	W10407216		Gasket, Door (grey)   (Replaces: W10248749)			Immediately	$ 298.38
12	W10564651		Assembly, Adapter (right Hand)				$ 88.55
12	W10564647		Assembly, Adapter (left Hand)				$ 142.60
13	W10564677		Assembly, Upper Pan				$ 66.50
14	W11677723		Support, Pan   (Replaces: W10469177)			Immediately	$ 155.10
15	WP489443		Screw   (Replaces: 489443)			Immediately	$ 8.33
16	W10585150		Stop, Pan (right Hand)				$ 86.09
16	W10585151		Stop, Pan (left Hand)				$ 86.03

    View Diagram in Separate Window       Print Part List
