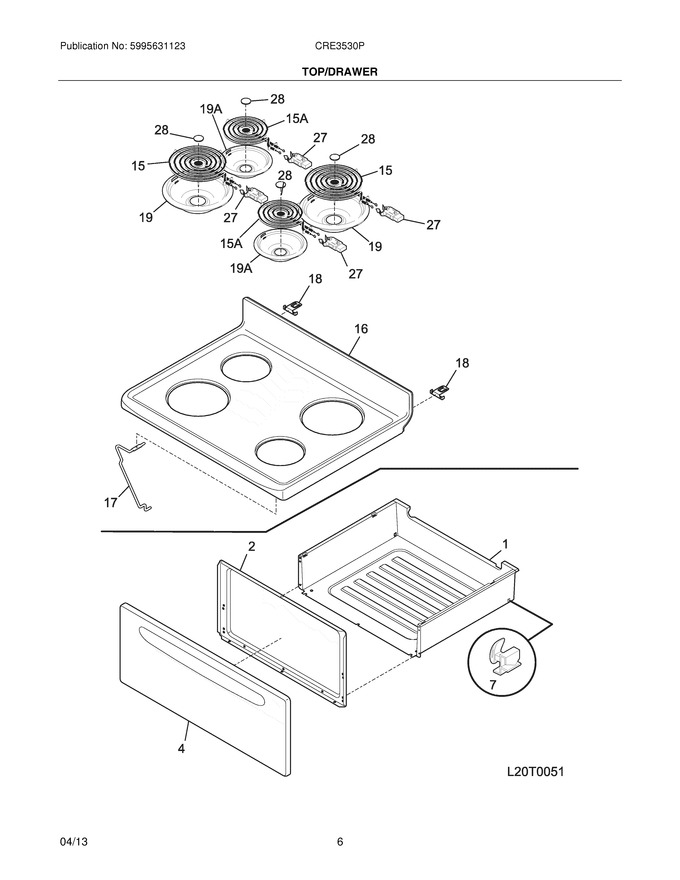

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408706		Drawer,utility   (Replaces: 316408703)			Immediately	$ 110.61
2	5304511288		Liner,drawer   (Replaces: 316284800)				$ 57.64
4	316231328		Panel,drawer ,black   (Replaces: 316231306)				$ 66.18
7	316407402		Glide,drawer ,rear   (Replaces: 316407400)			Immediately	$ 9.86
16	316202387		Main Top,black				$ 448.19
17	316057601		Rod,support ,main Top				$ 64.49
18	316580800		Bracket-hinge,main Top			Immediately	$ 9.86
28	5303017715		Medallion,1 1/2``dia ,black ,surface Element				$ 64.46
F15	316442301		Element,surface ,8`` ,large   (Replaces: 318372214)			Immediately	$ 44.39
F15A	318372211		Element,surface ,6`` ,small			Immediately	$ 45.14
F19	316048413		Pan-surface Element,chrome ,large/8 Inch			Immediately	$ 9.85
F19A	316048414		Pan-surface Element,chrome ,small/6 Inch			Immediately	$ 16.11
F27	5303935058		Terminal Block Kit,surface Element   (Replaces: 5303912666)			Immediately	$ 13.81
FNI	316580400		Harness,wiring ,surface Units				$ 184.37
NI	5308014215		Screw,6-20 X 0.312				$ 2.28
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
