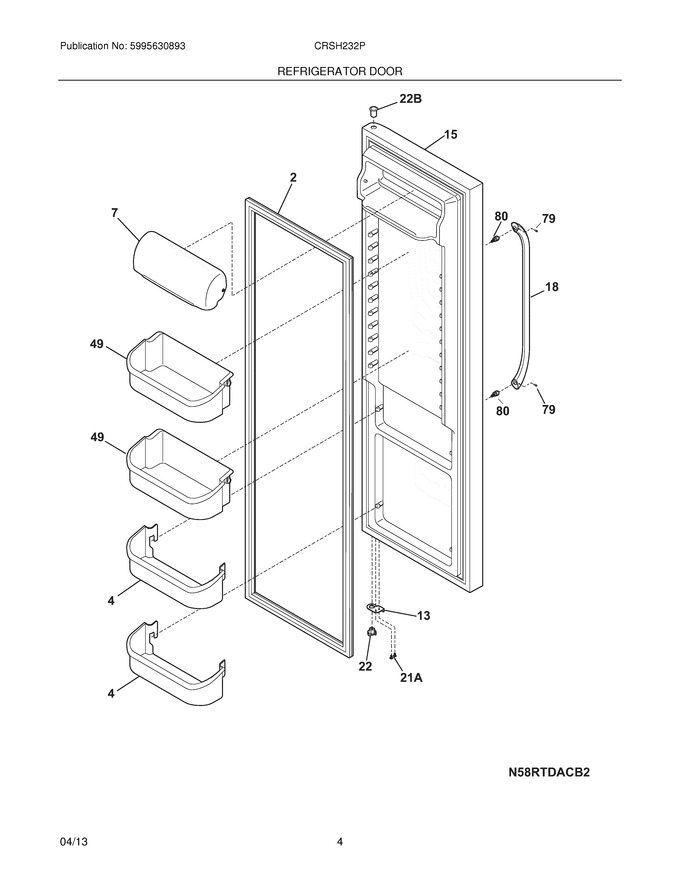

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	240363701		Bin-door,2-liter			Immediately	$ 59.42
7	240338313		Door,dairy ,clear   (Replaces: 240338303)			Immediately	$ 80.80
13	240581901		Door Stop,white ,refr				$ 43.95
15	807460102		Refrigerator Door,complete ,white		Appelez-nous	-
18	297422020		Handle-door,white ,refr/frz ,w/set Screw   (Replaces: 242152702)				$ 99.77
22	242015301		Bearing-hinge(ref),natural ,closer				$ 11.44
49	240324501		Bin-door,gallon			Immediately	$ 69.06
79	218755402		Screw-set,10-32 X .500 In			Immediately	$ 33.00
80	218755504		Screw-shoulder,no.10 Ab ,handle Mounting			Immediately	$ 18.60
21A	240442708		Screw-no.10-32 X 3/4,zinc   (Replaces: 240442706)				$ 8.34
22B	240328402		Bearing-hinge,natural ,upper				$ 19.85
F2	241786015		Gasket-refr Door,white ,magnetic   (Replaces: 241786003)			Immediately	$ 94.66
