SELECT A DIAGRAM

01 - Cover


03 - Upper Cabinet/drum/heater

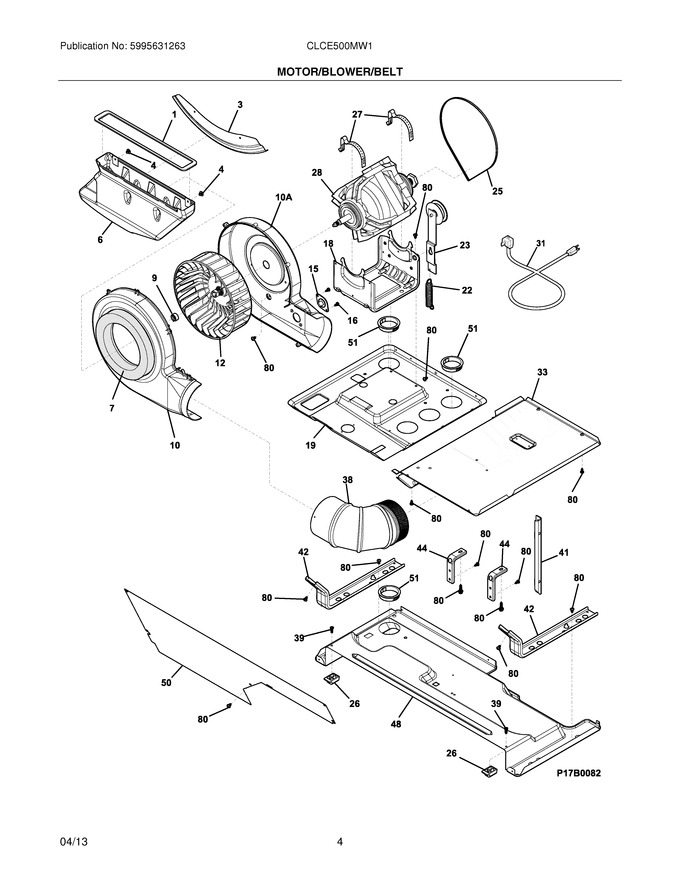

05 - Motor/blower/belt


07 - Control Panel


09 - Lower Cabinet/top


11 - Motor/tub


12 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131295200		Seal,air Duct				$ 16.30
3	137539100		Shield,air Duct				$ 46.78
4	131362400		Fastener,push-in				$ 9.41
6	5304521121		Duct,air   (Replaces: 134086300)				$ 118.56
7	3204490		Seal,housing ,to Air Duct				$ 14.18
9	5304488479		Clamp			Immediately	$ 32.09
10	137551600		Housing, Blower,front W/seal				$ 140.96
12	131476300		Blower Wheel			Immediately	$ 47.00
16	131243700		Screw,pan Head ,8-18ab X 0.375				$ 3.36
18	131367110		Cradle,motor W/idler   (Replaces: 131367100)				$ 68.75
19	137490900		Pan, Upper L/c,dryer, Formed		Appelez-nous	-
22	3205241		Spring,idler				$ 75.83
23	5304507499		Idler Arm Assy,with Pulley   (Replaces: 131863100)			Immediately	$ 42.66
25	137292700		Belt,dryer, Lc			Immediately	$ 9.34
26	137511300		Block,support		Appelez-nous	-
27	134242400		Clamp,motor Mtg.			Immediately	$ 35.76
31	137110200		Power Cord,electric Svce ,w/strain Relief				$ 119.07
33	131731401		Shield-access		Appelez-nous	-
38	137610300		Elbow,90 Deg 4`` Fixed				$ 41.90
39	131205100		Screw,no.8 Pan Head ,10-10b X 0.500 ,cr/sq Drive			Immediately	$ 14.18
41	131091300		Bracket,support, Side		Appelez-nous	-
42	137304710		Bracket,marriage, Dryer		Appelez-nous	-
44	3204326		Bracket,l Mounting ,cabinet Rear ,external				$ 43.24
48	137329110		Pan,bottom Lc Dryer		Appelez-nous	-
50	5304488478		Cover,support, Lcd		Appelez-nous	-
51	131453000		Bushing,snap-in				$ 10.63
80	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 14.18
10A	137551800		Housing,blower, Rear			Immediately	$ 107.00
F15	134587700		Thermistor,control			Immediately	$ 56.39
F28	8581341966035		Motor,dryer Drive ,with Pulley   (Replaces: 134196600)			Immediately	$ 142.51
FNI	134101400		Terminal Block,main			Immediately	$ 55.99

    View Diagram in Separate Window       Print Part List
