Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2264716B Refrigerator Door Panel (includes Illus. 9 & Molded Door Handle) (black) Appelez-nous -
1 W10209800 Refrigerator Door Panel (includes Illus. 9 & Molded Door Handle) (stainless) Appelez-nous -
1 2264716W Refrigerator Door Panel (includes Illus. 9 & Molded Door Handle) (white) Appelez-nous -
2 W11396038 Bin, Door   (Replaces: 2265126) Special Order $ 138.81

3 WP2258681W Shim, Door Stop (white)   (Replaces: 2258681W) In-Stock Immediately $ 6.47

3 2258681B Shim, Door Stop (black) Special Order $ 38.85

4 WP2266727 Trim, Door   (Replaces: 2266727) In-Stock Immediately $ 83.25

5 W11745278 Bracket, Door Stop (silver)   (Replaces: 2189202) In-Stock Immediately $ 12.03

6 WP2212648 Hole Plug (white)   (Replaces: 2212648) Special Order $ 7.02

6 WP2212651 Hole Plug (black)   (Replaces: 2212651) Special Order $ 20.75

7 2264477 Housing, Compartment Special Order $ 83.18

8 2264478 Cover, Utility Special Order $ 32.58

9 WP2319264B Door Gasket, Magnetic (black)   (Replaces: 2264723) Special Order $ 277.59

9 WP2319264W Door Gasket, Magnetic (white)   (Replaces: 2264727) In-Stock Immediately $ 282.07

10 WPW10468559 Trim, Door Shelf   (Replaces: W10468559) Special Order $ 93.74

11 WPW10234241 Trim, Door Shelf   (Replaces: W10234241) In-Stock Immediately $ 104.87

12 WP2156003 End Cap, Door Trim   (Replaces: 2156003) In-Stock Immediately $ 11.36

13 WP2319263B Door Gasket, Magnetic (black)   (Replaces: 2264722) In-Stock Immediately $ 229.95

13 WP2319263W Door Gasket, Magnetic (white)   (Replaces: 2264726) In-Stock Immediately $ 135.93

14 W10276642 Screw   (Replaces: 8533904) Special Order $ 5.49

15 2264717B Freezer Door Panel (includes Illus. 13 & Molded Door Handle) (black) Appelez-nous -
15 W10209793 Freezer Door Panel (includes Illus. 13 & Molded Door Handle) (stainless) Appelez-nous -
15 2264717W Freezer Door Panel (includes Illus. 13 & Molded Door Handle) (white) Appelez-nous -
16 WPW10170766 Nameplate (silver)   (Replaces: W10170766) In-Stock Immediately $ 60.43


    View Diagram in Separate Window     Print Icon   Print Part List

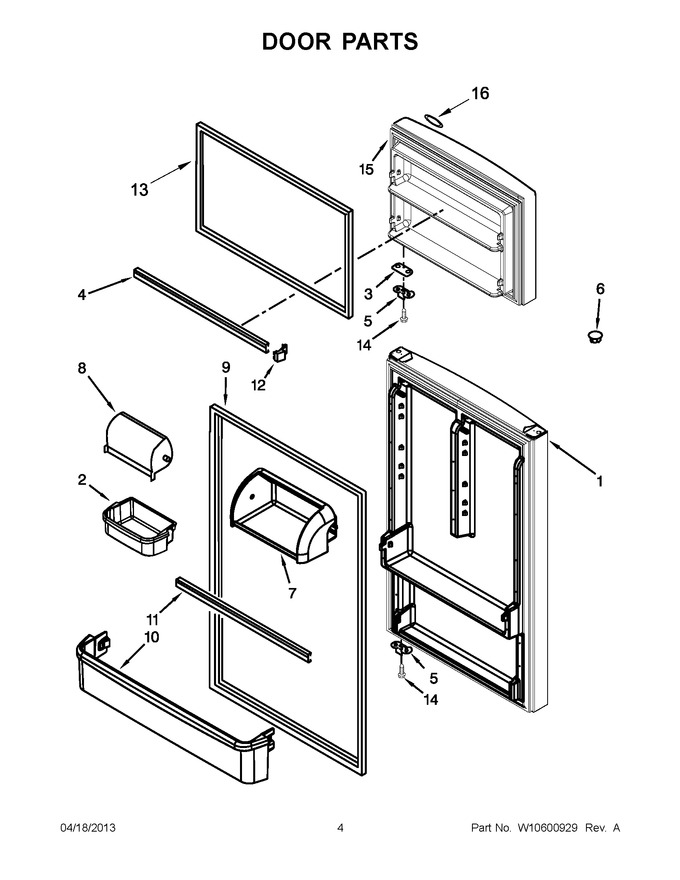

Diagram for M8RXEGMAW01
